Machining an inducer used in rocket engine turbo pumps with a 5-axis machine!

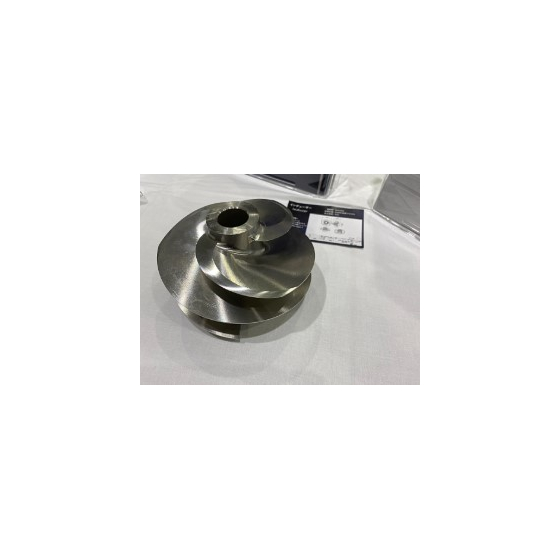

We processed an inducer for aerospace components using a 5-axis machining center. The image shows the inducer used in the turbo pump of a rocket engine. There were various challenges before it took shape. We struggled to create a 3D model that matched the theoretical values desired by the customer. To ensure that the machining was done according to the completed 3D model, we worked to prevent edge chipping, avoid surface chatter, and align surface positions during additional processing. The successfully machined parts were used in tests for the rocket engine. [Industry] ■ Aircraft ■ Plant manufacturing ■ Space *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Material: Iron, Stainless Steel, Titanium ■Lot: 1 to 100 pieces ■Accuracy: 0.1mm to 1/100mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Industry and Applications】 ■ Aerospace, Space, and Plant-related Industries ■ Precision parts related to aircraft, rockets, plant equipment, etc. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Since our establishment in March 1988, we have been dedicated to precision mold component processing, responding to a wide range of customer needs. Thanks to this, we have received high praise from various sectors. Our company's unique feature lies in the fusion of "IT" and "craftsmanship." By integrating the latest IT technologies with state-of-the-art equipment that enables high-precision processing, we efficiently manage work processes and quality control, allowing us to deliver products to our customers with short lead times and low costs. On the other hand, we focus on training our technicians to achieve a level of precision that machines cannot match. While efficiently functioning with these two features, we will continue to create components that meet our customers' needs, ensuring that the parts manufactured by Chimera serve as a foundation for our customers' profits.
