Optimal tool for visualizing safety belt usage status!

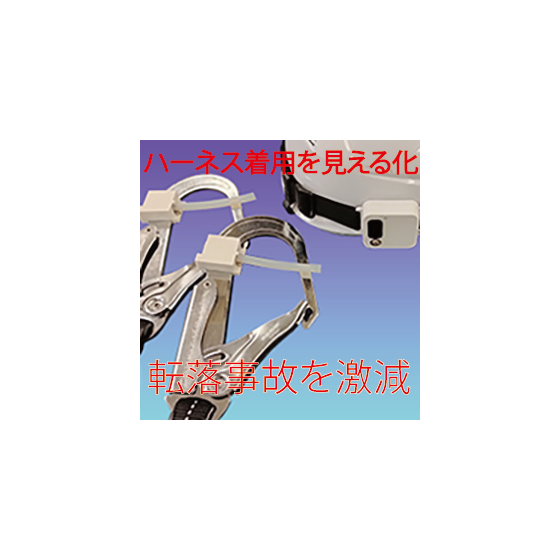

※Visualization of safety belt usage ⇒ Habit formation ⇒ Prevention of fall accidents A wireless switch that can be retrofitted to existing safety belts detects the usage status of the harness! When it detects that the hook is not in use, it alerts the user and simultaneously sends data to the cloud, enabling remote monitoring by administrators. Usage status logs are recorded in one-minute intervals. Workers receive audio and visual warnings by attaching a wireless receiver to their helmets. **The areas where alarms are needed can be set using area sensors! By combining multiple area sensors, it is possible to set up complex alarm locations. The rotary switch on the area sensor allows for the setting of alarm ranges. ***History management via PC or smartphone (optional) is also possible! It is possible to manage the usage status of the harness notify via PC or smartphone. Data can be collected from the history. Safety education can be conducted for workers not using harnesses in hazardous areas.
Inquire About This Product
basic information
【General Specifications】 Frequency Range: 2,400–2,483.5MHz Operating Frequency: 2,402~2,480MHz Modulation Method: GFSK Receiving Sensitivity: -92dBm Occupied Bandwidth: 4MHz Transmission Distance: Up to 60m *The reachable distance may be shorter due to obstacles and other influences. 【Area Sensor】 Power Supply: Three AA batteries Operating Time: 6 months Dimensions: 66 (W) × 56 (H) × 43 (D) mm Weight: Approximately 72g *Excluding batteries 【Receiver】 Power Supply: Lithium rechargeable battery (Lip450mAh) Operating Time: Standby: Approximately 20 hours (when fully charged, at normal temperature and humidity) Storage Temperature: -10℃ to +60℃ Operating Temperature: 0℃ to 50℃ Dimensions: Power Switch Section: 36 (W) × 60 (H) × 17 (D) mm Setting Signal Section: 117 (W) × 25 (H) × 18 (D) mm *Excluding 1M cable Weight: Approximately 115g *Including cable Maximum Connection Number: Unlimited (Receiver) Accessories: Charging cable (USB-type-A), AC adapter, 4 pieces of Velcro
Price range
Delivery Time
Applications/Examples of results
High-altitude worker Safety belt user
