Warning of attention and danger with sound and light! Preventing pinching accidents - contact warning device.
Pinch Guard - Laser Contact Alarm Device

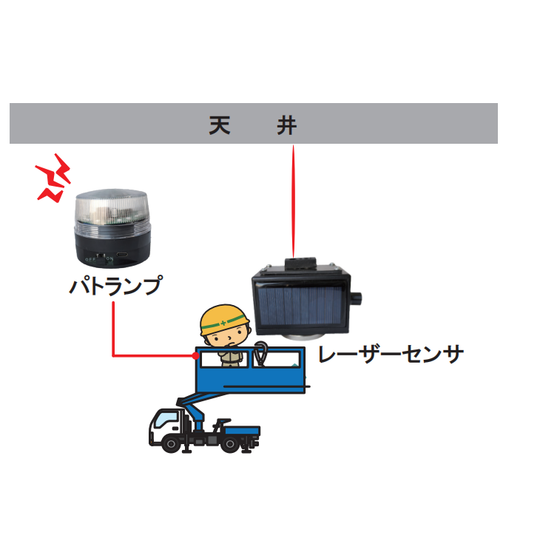

Prevent accidents caused by contact or entrapment between tunnel inspection vehicles, aerial work platforms, vertical lifts, and superstructures!! Laser sensors mounted on the buckets of aerial work platforms measure the distance to the ceiling and wirelessly send data to a warning light. ● Uses fine laser beams, providing longer detection distances and fewer false activations compared to ultrasonic methods. ● When the distance falls below the set threshold, the warning light alerts with sound and light. ● The warning light and sensor can be easily installed in locations with lift switches, such as inside the cabin or basket, using magnetic mounts. **Laser Detection Distance** 0.1m to a maximum of 10m Settings for caution distance and danger distance are possible. Based on information from the sensor, it provides warnings with different sounds and lights according to the set distance. Safe distance: Warning light is off. Caution distance: Warning light flashes blue + intermittent warning sound. Danger distance: Warning light flashes red + intense warning sound.
Inquire About This Product
basic information
Specifications 【Laser Sensor】 Built-in Battery: Lithium Polymer (2600mAh) Detection Range: 0.1m to a maximum of 10m (modifiable via settings tool) Power Consumption: 75mA Operating Time: 4 days (8 hours of operation per day) Dimensions: 90 (W) × 60 (H) × 55 (D) mm Weight: Approximately 184g Remarks: Connector Type: USB, Mounting Method: Magnet 【Patrol Lamp】 Built-in Battery: Lithium Polymer (2000mAh) Operating Time: 13 days (8 hours of operation per day) Dimensions: 72 (W) × 65 (H) mm Weight: Approximately 182g Remarks: Connector Type: USB, Mounting Method: Magnet
Price information
Delivery Time
Applications/Examples of results
Tunnel inspection vehicles, aerial work platforms, vertical lifts, etc.
Detailed information
-
Laser sensor
-
Patrol lamp
catalog（1）
Download All Catalogs
Company information
Ronk Co., Ltd. is a manufacturer of wireless equipment-related products headquartered in Sagamihara City, Kanagawa Prefecture. The headquarters has planning and design departments as well as sales, and there is a group company in Shanghai, China, which manages manufacturing, quality, delivery, and other aspects within China. It is a fabless company that requests manufacturing of small to medium production items from domestic partner companies. Based on skilled digital wireless technology, we develop and manufacture digital wireless products such as digital wireless modules that achieve industry-leading low latency of 0.6 ms, next-generation digital wireless intercoms, digital wireless guide systems, and digital wireless microphones. 1. Contract Development We can accommodate mechanical design, circuit design, PCB design, firmware design, PC application design, and smartphone application design. 2. Contract Manufacturing We can accommodate everything from mold making, parts procurement, PCB manufacturing, main unit assembly, packaging material design and production, label design and production, inspection jig design and production, to manufacturing process design. 3. Free Development If a certain production volume is guaranteed, we can develop products with part or all of the initial investment covered by our company. Please feel free to consult with us.
