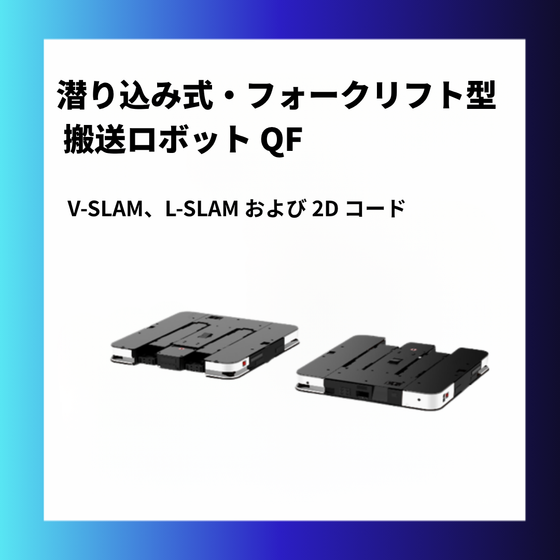

By combining the LMR chassis with the FMR fork, it can operate like a flexible, under-slung robot and directly transport pallets.
Functions and Features - Compatible with a wide variety of transport items, supporting national standard pallets (ISO6780:2003), non-standard pallets, and non-standard racks. - Modular and component-based design enables faster delivery and more convenient operation and maintenance. - Capable of pick-and-put operations in narrow aisles, with a 25% increase in travel speed and enhanced storage capacity compared to traditional unmanned forklifts. - Differential drive robots can reach a maximum travel speed of 2m/s. - Can dock with various peripheral devices and directly interface with external equipment such as roller conveyors, vertical conveyors, freight elevators, and sheet shutters. - Capable of switching between multidimensional navigation methods such as V-SLAM, L-SLAM, and 2D codes. - Equipped with multiple safety protections and multidirectional three-dimensional protection features.
Inquire About This Product
basic information
QF3-600A Specifications Basic Data - Dimensions (L×W×H): 1250×1200×190 mm - Rated Load: 600 kg - Applicable Pallet Insertion Height: 100–120 mm - Applicable Pallet Inner Diameter: ≤215 mm - Applicable Pallet Outer Diameter: 665–1000 mm - Applicable Pallet Length: 600–1500 mm Motion Performance - Drive Mode: Differential Drive / Steering Drive - Rated Speed (Fully Loaded / Unloaded): 1500 / 1800 mm/s - Minimum Aisle Width (1200×1000 Pallet): ≥1800 mm - Applicable Roller Conveyor Height: ≤200 mm Battery Performance - Operating Time under Rated Conditions: 6–8 hours - Charging Time after Full Discharge: ≤1.5 hours
Price range
Delivery Time
Applications/Examples of results
Transportation within factory floors, logistics sorting and delivery, warehouse transportation, agricultural house transportation, large supermarket transportation, transportation within complexes and parks, highways, etc.
Company information
Our company guides customers to the robot exhibition center, delves into their potential needs and challenges, and provides the most suitable cutting-edge robot solutions from our own brand products across a wide price range. The foundation of our competitive advantage lies in our ability to integrate overseas technology with Japan's strengths, creating designs that align with universal design principles and user needs through secondary development. We have already partnered with dozens of overseas companies to develop new products that meet customer needs, thereby enhancing customer satisfaction. Our goal is to become the "Apple of the service robot industry" and contribute to enriching the lives of people around the world by expanding a globally recognized Japan brand both domestically and internationally.
