Can be used at a micro flow rate of 1 to 200 cc/min.

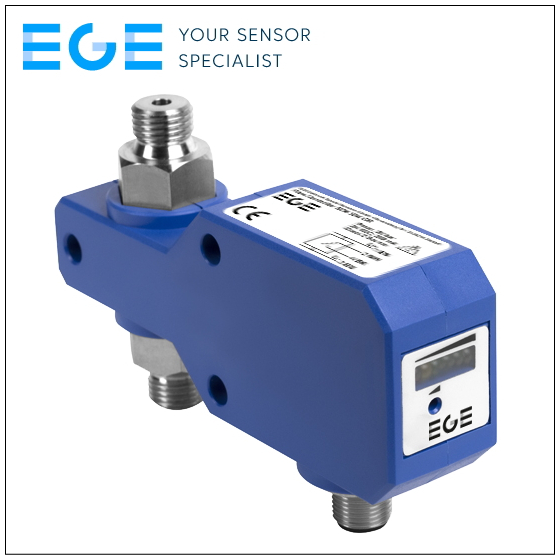

The 【SDN503GA】 is a thermal wire flow sensor that is a combined sensor/converter manufactured by the German company EGE, designed for micro flow applications. It is an inline type with no protrusions inside the pipe, and is available in a lineup with inner diameters ranging from 3.6mm to 20mm. It can detect flows starting from 1cc/min, and an analog output type is also available. *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
Connection standard: G1/4" (Inner diameter: φ3.6mm) Sensing range (l/min): 0.0001 to 0.5 Operating range (l/min): 0.001 to 0.2 Maximum flow rate (l/h): 100 Output: Relay Contact current (mA): 1000 Contact voltage (V): 30AC/36DC Resistance load (Ω): — Power supply (V): DC24±10% Current consumption (mA): <50 Ambient temperature range (℃): 0 to +60 Fluid temperature range (℃): 0 to +80 Temperature gradient (K/min): 400 Standby time (s): 5 to 15 Response time (s): 0.5 to 1 Maximum operating pressure (MPa): 2 Material: Sensor: SUS316, Housing: PBT Display: LED Protection rating: IP67 Wiring connection: M12 connector *For detailed specifications, please refer to the catalog. Feel free to contact us for inquiries.
Price range
Delivery Time
Applications/Examples of results
■Oil compatible ■Food compatible ■Flow detection ●For more details, please contact us.
Line up（7）
| Model number | overview |
|---|---|
| SDN 503 GSP | Tube connection 4 mm - 0.1 to 500 ml/min - PNP NO |
| SDN 503 GA | Low flow sensor 4 mm - 0.1 to 500 ml/min - 4 to 20 mA |
| SDN 503 GR | Pipe connector 4 mm - 0.1…500 ml/min - Relay |
| SDN 503/1 GSP | G1/4 - 0.1 to 500 ml/min - PNP NO |
| SDN 503/1 GR | G1/4 - 0.1 to 500 ml/min - Relay output |
| SDN 503/1 GA | G1/4 - 0.1 to 500 ml/min - Analog output 4 to 20 mA |
| SDN 503/2 GSP | Tube connection 6 mm - 0.1 to 500 ml/min - PNP NO |
