Due to the soft material, it can be cut with scissors to accommodate sizes such as 2230/2242/2260!

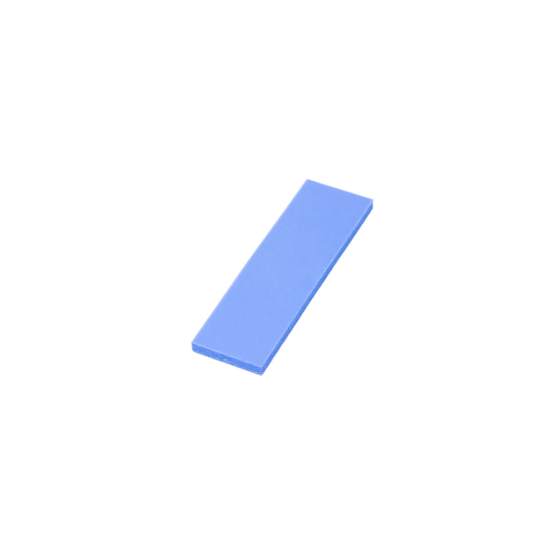

The "HT-20" is a gap-filling pad for 3mm thick M.2 SSDs. Due to its thickness, it can be used by inserting it between the M.2 SSD and the casing. Its flexibility and elasticity make it suitable for filling uneven surfaces. It can be attached to chipsets such as expansion cards, memory, and motherboards. Additionally, it can be freely cut and used for various applications. It has a higher tack (adhesiveness) than typical thermal conductive pads, making it easier to adhere. 【Specifications (partial)】 ■ Thermal conductivity: 2.0W/m·K ■ Thermal resistance value: 0.792℃·in²/W ■ Operating temperature: -40 to 220℃ ■ Dielectric breakdown voltage: >6.5kV/mm ■ Size: W21×D70×H3mm *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Other Specifications】 ■Flame Retardant: UL94 V-0 ■Color: Blue ■Compliant with RoHS Directive (10 substances) *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
