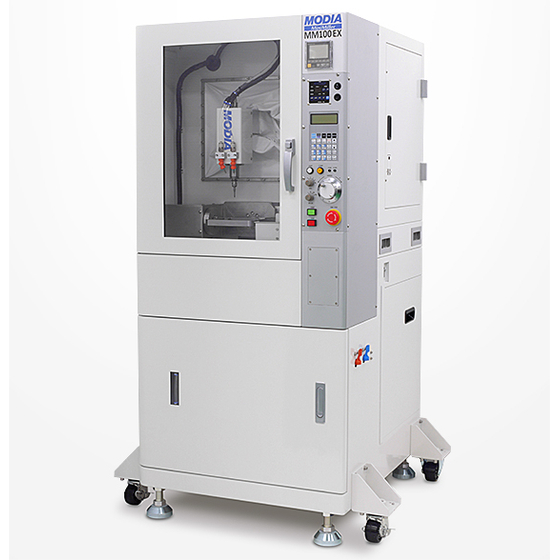

High-speed, high-precision compact NC machining machine [MM100EX-SR2]
MiniMiller MM100EX-SR2
The compactness of the MM100EX has been maintained while doubling the output of the servo motor, achieving an improvement in the quality of precision machining.
<Main Features> Compared to the MM100EX, the MM100EX-SR2 features a servo motor with double the output. The torque of each positioning axis has increased, achieving stabilization in processing. With the larger size of the servo motor, the width of the main unit has increased by 35mm, enhancing installation stability. If there is ample installation space, the MM100EX-SR2 is recommended. ◆ Maximum simultaneous 5-axis, high-precision compact machining ◆ Compact design considering workability ◆ Equipped with a maximum 60,000 RPM ATC spindle (4 to 7 tools) ◆ Adopts precision ball screws and linear guides ◆ Customization and jig manufacturing can be accommodated according to needs ◆ Capable of processing difficult materials such as titanium and ceramics ◆ Equipped with LAN (FTP server) and large-capacity memory
Inquire About This Product
basic information
<Main Specifications> ● Motion range for each axis: X-axis 180mm (150mm with ATC) / Y-axis 120mm / Z-axis 110mm A-axis rotation ±999 degrees / B-axis rotation limited to specified angle ● Spindle: Speed 5000–60000 RPM / ATC 4 or 7 tools ● Servo motor rated output: 200W ● Control axes: 3-axis simultaneous interpolation control / 4-axis simultaneous interpolation control / 5-axis simultaneous interpolation control ● Interface: LAN 10BaseT/100BaseTX FTP server function / RS232C ● Power supply: AC100V±10% / under 1500W ● Weight: Approximately 230kg (varies with number of axes, mounted fixtures, etc.) ● Dimensions: W685mm × H1490mm × D780mm (excluding protrusions)
Price range
P6
Delivery Time
※Approximately 1.5 to 2 months after receiving the order.
Applications/Examples of results
<MM100 Series Case Studies> ■ Jewelry and Industrial Product Cutting Manufacturing of jewelry, accessories, and industrial products through cutting of titanium and precious metals. ■ Model Processing Model processing for mobile phones, fishing gear, electronic components, toys, etc. ■ Education Education in the NC department at industrial high schools, polytechnic colleges, engineering universities, and vocational schools. ■ Camera Lens Body Engraving Precision engraving of distance setting numbers on camera lens bodies ranging from 60φ to 120φ, automatic engraving of sequence numbers. ■ Lens Marking Marking of glass lenses, marking of plastic lens molds. ■ Mold Manufacturing Manufacturing of electrodes (copper) for discharge machining of press molds for medals. ■ Die Steel Engraving Processing Processing of marking heads using die steel and stainless materials. ■ Watch Dial Processing Engraving of fine text and patterns on watch dials made from precious metals, mother-of-pearl, etc. ■ Semiconductor Inspection Inspection of defects caused by slicing cuts in semiconductors. ■ Seal Manufacturing Production of official seals made from high-quality materials such as boxwood, titanium, and ivory. ■ Small Diameter Pipe Processing Cutting of small holes and fine patterns in small diameter pipes (2-5mm) made of resin and metal. ■ Micro Hole and Groove Processing ■ Special Key Manufacturing ■ Musical Instrument Parts Manufacturing ■ Traditional Lacquerware Engraving
Company information
Modia Systems is a manufacturer of small NC machining machines. With our accumulated know-how and the flexible response unique to small machines, we meet our customers' needs. As "research and development equipment capable of high-precision NC machining at the desk side" and as "mass production equipment with reduced introduction costs," we invite you to take a look at our MM100 series.
