High-precision and high-durability laser mutation sensor.

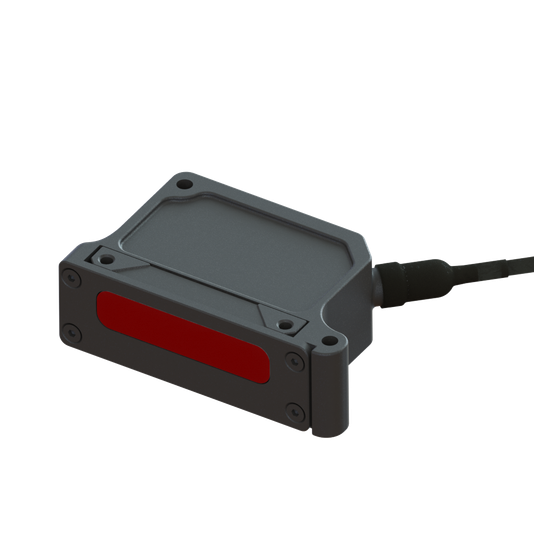

The RHL5 Laser Ride Height Sensor is a high-precision laser displacement sensor developed for motorsports and high-performance vehicles. It features class-leading measurement accuracy and fast response performance in a compact and robust aluminum housing, making it suitable for a wide range of applications including ride height measurement, suspension analysis, and chassis deformation measurement. The RHL5 is available in two measurement ranges of 200mm and 500mm, supporting high-speed measurements of up to 4kHz. Some parameters can be adjusted via CAN, allowing for optimal sensor settings while mounted on the vehicle.
Inquire About This Product
basic information
- Laser displacement sensor pursuing compactness, high precision, and robustness - Measurement range = 200 mm (60 to 260 mm), 500 mm (100 to 600 mm) - Some parameter settings can be changed via CAN - Measurement frequency = 250, 500, 1000, 2000, or 4000 Hz (can be changed via CAN) - Output = 1 to 5 VDC - Supply voltage = 11 to 30 VDC
Price range
Delivery Time
Applications/Examples of results
- Ride height measurement - Suspension setting - Chassis deformation analysis - Body deflection measurement
Company information
Cyann Co., Ltd. is a company founded in 2004 with the aim of supporting the development of motorsport vehicles. The founding members have dedicated themselves to various fields in their careers, including import and export operations, CAD design, wire harness manufacturing, inspection/quality control, and new business development sales. We focus on leveraging these experiences to supply beneficial products to our users in a timely manner. Additionally, we continue to engage in activities to capture and propose new technologies and information. Furthermore, we believe that the knowledge and experience gained from motorsport R&D can be effectively utilized in areas such as mass-produced vehicles and heavy industrial product prototype development. In fact, we take pride in the successes achieved by our partners in fields such as aerospace, military, heavy industry, medical, and vehicle testing.
