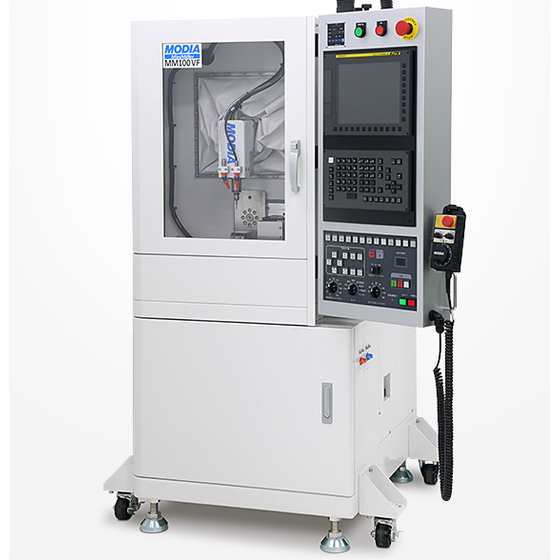

High-speed, high-precision compact 5-axis machining center [MM100VF-SR2]
MiniMiller MM100VF-SR2
A compact 5-axis machining center equipped with FANUC 31i for all manufacturing sites.
<Main Features> Compared to the MM100VF, the MM100VF-SR2 uses a servo motor with double the torque. The torque of each positioning axis has increased, achieving stabilization in processing. With the larger size of the servo motor, the width of the main unit has increased by 35mm, improving installation stability. If there is ample installation space, the MM100VF-SR2 is recommended. ◆ Equipped with FANUC 31i-B5 Plus (simultaneous 5-axis control) ◆ A compact NC machining machine ideal for educational institutions learning 5-axis control ◆ Equipped with an ATC spindle that can choose between 60,000 and 30,000 RPM (number of tools: 7) ◆ Provides a higher level of positioning accuracy compared to the MM100EX due to ISO-compliant precision inspection and FANUC's correction functions ◆ Flexible response to needs such as manufacturing in a 3-axis configuration or creating dedicated jigs according to workpiece shapes ◆ A compact circulating coolant system with the tank and pump stored inside the main unit
Inquire About This Product
basic information
<Main Specifications> ● Maximum Operating Range: X-axis 200mm / Y-axis 120mm / Z-axis 110mm B-axis 120 degrees / C-axis 360 degrees ● Spindle: Speed 60000RPM / 30000RPM (High Torque Specification) / ATC 7 tools ● Servo Motor Rated Output: 200W ● Control Axes: 5-axis simultaneous control ● Control Device: FANUC 31i-B5 ● Data Input Method: LAN / USB / Memory Card ● Power Supply: AC200V Single Phase 15A ● Weight: Approximately 250kg ● Dimensions: W690–950mm × D780–1140mm × H1490mm *Note: Dimensions may vary depending on the angle of the operation panel.
Price range
P6
Delivery Time
※Approximately 2 to 3 months after receiving the order.
Applications/Examples of results
<MM100 Series Case Studies> ■ Jewelry and Industrial Product Machining Manufacturing of jewelry, accessories, and industrial products through machining of titanium and precious metals. ■ Model Machining Model machining for mobile phones, fishing gear, electronic components, toys, etc. ■ Education Education in the NC department at industrial high schools, polytechnic colleges, engineering universities, and vocational schools. ■ Camera Lens Body Engraving Precision engraving of distance setting numbers and automatic engraving of sequence numbers on camera lens bodies ranging from 60φ to 120φ. ■ Lens Marking Marking of glass lenses and marking of plastic lens molds. ■ Mold Manufacturing Production of electrodes (copper) for discharge machining of press molds for medals. ■ Die Steel Engraving Machining of marking heads made from die steel and stainless materials. ■ Watch Dial Machining Engraving of fine text and patterns on watch dials made from precious metals, mother-of-pearl, etc. ■ Semiconductor Inspection Inspection of defect causes through slice cutting of semiconductors. ■ Seal Production Production of official seals made from high-quality materials such as boxwood, titanium, and ivory. ■ Small Diameter Pipe Machining Cutting of small holes and fine patterns in small diameter pipes (2-5mm) made of resin and metal. ■ Micro Hole and Groove Machining ■ Special Key Manufacturing ■ Musical Instrument Parts Manufacturing ■ Traditional Lacquerware Engraving
Company information
Modia Systems is a manufacturer of small NC machining machines. With our accumulated know-how and the flexible response unique to small machines, we meet our customers' needs. As "research and development equipment capable of high-precision NC machining at the desk side" and as "mass production equipment with reduced introduction costs," we invite you to take a look at our MM100 series.
