Two UART cores with 256-byte FIFO and 9-bit communication provided.

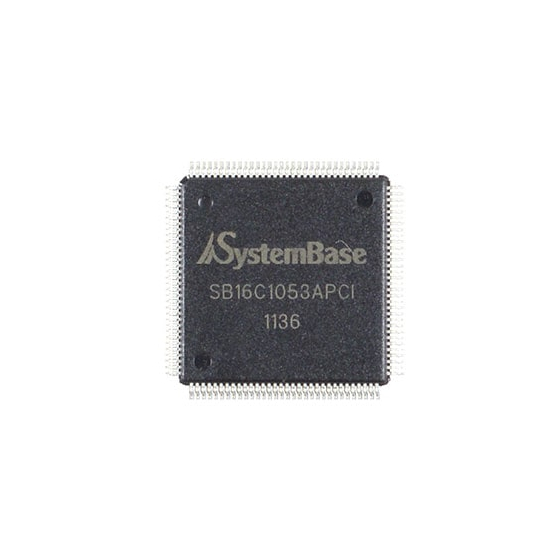

The SystemBase "SB16C1053APCI" is a controller that converts 2-channel UART and 1-channel parallel port to PCI bus. It converts the parallel port interface to MIO Bus TM, allowing for the installation of an external Quad-UART in place of the parallel port, enabling expansion up to 6 ports. Equipped with two SB16C1050A cores, it reduces CPU load with a 256-byte FIFO, achieving high resistance to overrun errors. Additionally, it operates without performance degradation even when multiple ports are used simultaneously. Furthermore, with the PCI power management function that applies interrupt or wake-up requests, it can start up a shut-down PC. The SB16C1053APCI allows for the addition of up to 6 serial ports and facilitates easier serial communication with RS-422/485 auto-toggling and global interleaving functions. With the SB16C1053APCI, it is easy to create multiple serial/parallel multi-port products.
Inquire About This Product
basic information
Compatible with PCI Local Bus Standard Specification 2.3 Supports 33/66MHz PCI 32-bit bus Supports PCI Power Management 1.2 Compatible with Compact PCI and Compact PCI hot swap Can load PCI configuration header data from external serial ROM Electrically compatible with PCI Local Bus Specification 3.0 (operable on PCI and PCI-X buses) Adopts the improved version SB16C1050A of SB16C1050 Compatible with 16C550 and 16C650 register structures Supports automatic input/output switching function for RS422 and RS485 bus with auto-toggle feature Communication possible up to 5.3Mbps (supports system clock up to 85MHz) Supports 9-bit communication (with automatic address detection feature) Supports HW and SW flow control (Auto-RTS/Auto-CTS and Xon/Xoff) With software flow control function, if data continues to be sent after Xoff character transmission, Xoff retransmission function Supports Xon any function to resume communication upon receiving any character Supports loopback control function for communication link fault diagnosis
Price range
Delivery Time
Applications/Examples of results
Please contact us.
