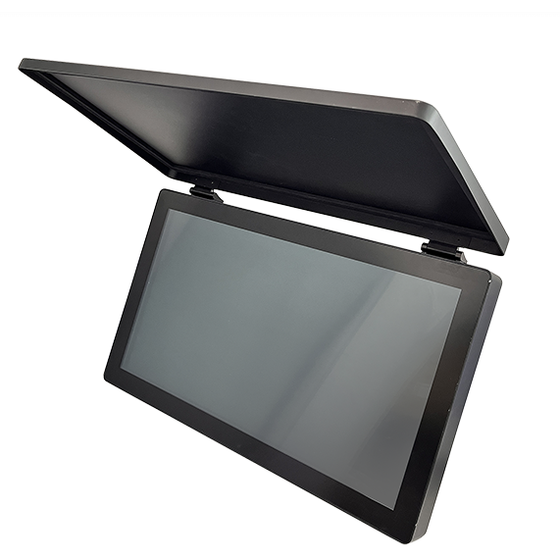

21.5" fully IP65 outdoor compatible, supports high brightness of 1300cd/m2, high-performance CPU AMD Ryzen Embedded V1605B.
【IBASE IDOOH-215-PC Features】 ■ 21.5" TFT LCD (High brightness 1300cd/m2) ■ Visible even in sunlight, high brightness 1300cd/m2 ■ High-performance CPU AMD Ryzen Embedded V1605B 3.6GHz ■ Memory DDR4-3200 up to 32GB ■ Shock resistance IK09, front protective panel cover ■ Full IP65 waterproof/dustproof, M12 waterproof connector ■ Automatic balance adjustment of airflow and system temperature
Inquire About This Product
basic information
Specifications ■ Display Size: 21.5" TFT LCD (16:9) ■ Display Resolution: Full HD (1920x1080) ■ LCD Brightness: 1300 cd/m² ■ CPU: AMD Ryzen Embedded V1605B (Quad-Core @ 3.6GHz) ■ Memory: DDR4-3200 x2 8GB (up to 32GB) ■ Storage: 2.5" SATA SSD x 1, M.2 2280 (M-Key, NVMe) x 1 ■ Expansion Slot: M.2 2230 (E-Key) x 1 ■ I/O Connectors: LAN x 1 (M12, 17P), USB 2.0 x 1 (with screw), HDMI x 1 (with screw) ■ Enclosure: Aluminum ■ Protection: Full waterproof and dustproof IP65, shock-resistant IK09 ■ Mounting: VESA 100x100mm ■ Input Power: AC 90-240V ■ Dimensions (WxHxD): 543 x 349.2 x 105mm (including panel cover) ■ Operating Temperature: -5 to 45°C ■ Certification: CE, FCC Class-B
Price information
Open price
Price range
P3
Delivery Time
P4
Applications/Examples of results
KIOSK terminals, machine control, factory automation systems, and vehicle-mounted applications such as forklifts.
Line up（1）
| Model number | overview |
|---|---|
| IDOOH-215-PC | 21.5-inch Panel PC AMD Ryzen Embedded V1605B 2.0GHz, 8GB DDR4, 64GB SSD |
