Solving the labor shortage in painting increases production by 1.4 times! What is a low-cost automatic painting line?
【Customer's Concerns】 - We have one worker assigned to the process of hanging and lowering the workpiece on the jig and another for the manual powder coating process, but due to a labor shortage, we want to automate the coating process. - The cost of painting robots is prohibitive. - We are considering whether we can set up a simple automatic painting line. 【NCC's Proposal】 We propose a reciprocating automatic coating machine for powder coatings from Parker Engineering, which can achieve painting quality comparable to manual work while keeping the initial costs lower than that of painting robots. 【Implementation Effects and Feedback】 - We were able to reassign one spray operator to other processes, achieving our initial goal of reducing manpower. - Continuous operation of the automatic coating machine allows for consistent application without unevenness, improving productivity. - Production volume increased from 250-300 pieces per day before implementation to 350 pieces. - Automation has stabilized the quality of the finished product, and we are looking forward to future mass production.
Inquire About This Product
basic information

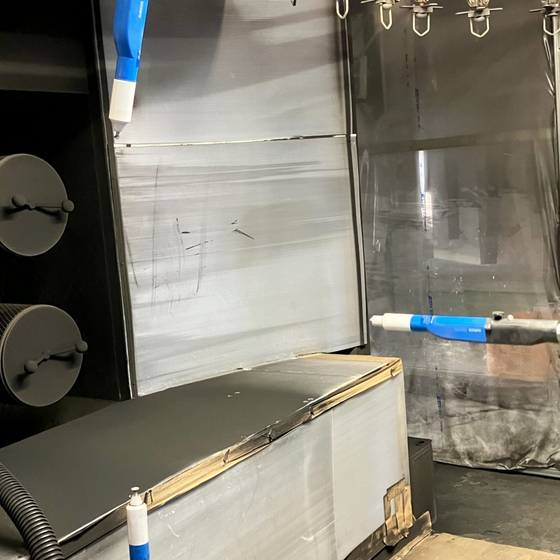

【Product Details】 This time, to paint both the inside and outside of pipe-shaped workpieces simultaneously, we installed one spray gun for the outside and two spray guns for the inside, positioned vertically. Additionally, we utilized a mechanism to rotate the existing fixtures on the line, allowing the workpiece to be rotated 180 degrees, achieving a uniform finish without unevenness with minimal movement, just like before. Furthermore, sensors are placed along the line to automatically start painting based on the number of seconds after passing the set sensor. This enables efficient painting while minimizing paint waste.
Price range
Delivery Time
Applications/Examples of results
- Automation of the painting process - Improvement of painting quality - Standardization of painting quality - Increase in productivity
