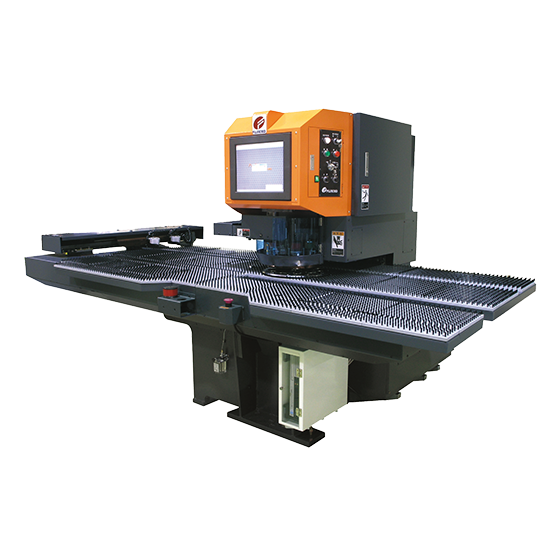

[Video available] A compact turret punch press with dimensions of 1200×600. It is well-suited for processing a variety of small quantities.
The "Pα Super Punch Press II" is a very compact and space-saving punching machine. Compared to other manufacturers, it has more than double the size difference. "I don't have space to install a punching machine in the factory." "I want a punching machine, but I have concerns about operation and cost." "I have been using a compact punching machine, but it has been discontinued and is no longer available." This product is recommended for companies facing such concerns. The station for mounting molds has 10 stations. Of these, 5 stations can be equipped with the following additional features: ■ An "Index Station" that eliminates the need for angled molds due to its rotation mechanism. ■ A "Multi-Tool" that can set up to 4 molds with a diameter of 10mm or less in a single station. It has the feature of being able to accommodate up to 25 stations while remaining compact. *For more details about the product, please contact us using the "Contact Us" button.
Inquire About This Product
Related Videos
basic information
The "Pα Super Punch Press II" is a compact turret punch with dimensions of 1200×600. 【Features】 ■ Compact and low-cost high-speed type ■ Number of turret stations: 10 stations (Up to 25 stations can be used with the optional multi-holder) ■ Brush table specification reduces back scratches on materials ■ Easy input via the color touch panel mounted on the machine ■ Program operation depiction (file playback) is possible on the monitor ■ External program storage method is USB memory ■ Number of index stations: 5 The rotation mechanism eliminates the need for angled molds at this station [Applicable model: PαS10MXV-126II] 【Options】 □ Multi-holder A holder that can set up to 4 molds with a diameter of 10mm or less at one station [Applicable model: PαS10MXV-126II] □ Import of CAD data (DXF) For other functions and details, please contact us via the 'Contact Us' button.
Price range
Delivery Time
Applications/Examples of results
Please contact us.
Line up（8）
| Model number | overview |
|---|---|
| PαS10MV-126CII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=3.2 (steel) ■ No index ■ Table specification: roller |
| PαS10MV-126BII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness t=3.2 (steel) ■ No index ■ Table specification: Brush |
| PαS10MXV-126CII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness t=3.2 (steel) ■ With index ■ Table specification: roller |
| PαS10MXV-126BII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=3.2 (steel) ■ With index ■ Table specification: brush |
| PαS10AV-126CII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: roller |
| PαS10AV-126BII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: brush |
| PαS10AH-126CII | ■ Pressing capacity: 32t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: roller |
| PαS10AH-126BII | ■ Pressing capacity: 32t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: Brush |
catalog（5）
Download All Catalogs
News about this product（2）
Company information
Since its founding in 1973, Fujikiko has created numerous innovative molds for sheet metal processing that are safe, efficient, and easy for anyone to handle. Additionally, we manufacture and sell unique and groundbreaking hydraulic presses, punch presses, deburring machines, and more, which are used by over 10,000 companies across the country and customers in more than 10 countries worldwide.
