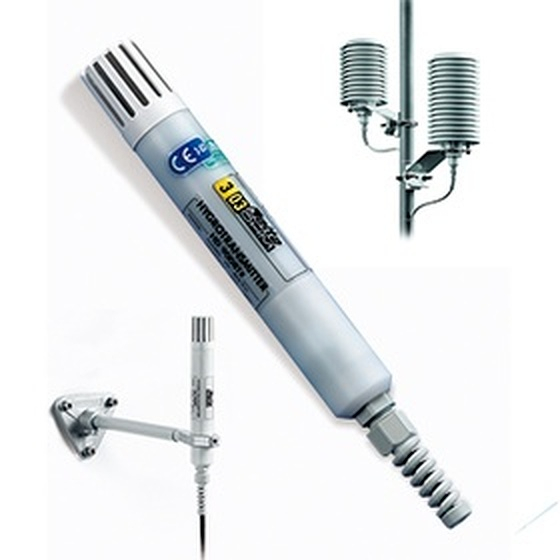

Small high-precision temperature and humidity transmitter
■ Microprocessor-controlled temperature and humidity transmitter ■ Despite its probe shape, it has a built-in amplifier, and temperature input can be scaled to the output ■ HD9008TRR has an output of 4-20mA, while HD9009TRR has an output of 0-1V ■ The sensor is mounted at the tip of a cylindrical resin case, with a highly responsive and long-lasting capacitive type humidity sensor, and a platinum sensor (100Ω/0℃) for temperature ■ Calibration and scaling of the transmitter are all set via key operations. No soldering of jumpers or adjustment of potentiometers is required ■ The humidity sensor can be recalibrated using two types of saturants: 75% and 33% ■ The relationship between input and output is fixed. An output of 4mA (or DC0V) corresponds to 0% RH, and an output of 20mA (or DC1V) corresponds to 100% RH ■ The standard temperature setting for both HD9008TRR and HD9009TRR is -40 to +80℃, corresponding to outputs of 4-20mA and DC0-1V respectively ▼ All output models have a built-in amplifier ▼ Highly reliable humidity and temperature sensors ▼ Temperature output scaling available ▼ Outdoor protective shield (optional)
Inquire About This Product
basic information
[HD9008TRR/HD9009TRR Common] Humidity measurement range: 0 to 100% RH Humidity accuracy: At 15 to 35℃: ±1.5% (0 to 90% RH) / ±2% (humidity range other than the above) Outside the above temperature range: ±(1.5 + 1.5% rdg)% Temperature measurement range: -40 to +80℃ Temperature accuracy: ±0.2℃ ±0.15% rdg [HD9008TRR] Power supply: DC 10 to 30V (4 to 20mA) Humidity output signal: 0% RH = 4.0mA 100% RH = 20.0mA Humidity load resistance: RLmax = (Vdc - 10) / 22mA Temperature output signal: -40℃ = 4.0mA +80℃ = 20.0mA Temperature load resistance: RLmax = (Vdc - 10) / 22mA Maximum cable length: 200m [HD9009TRR] Power supply: DC 5 to 35V (2mA) Humidity output signal: 0% RH = DC 0.00V 100% RH = DC 1.00V Humidity load resistance: Rinmin = 10kΩ Temperature output signal: -40℃ = DC 0.00V +80℃ = DC 1.00V Temperature load resistance: Rinmin = 10kΩ Maximum cable length: 10m
Price range
Delivery Time
P4
Applications/Examples of results
Ideal for indoors as well as outdoors, such as weather stations.
