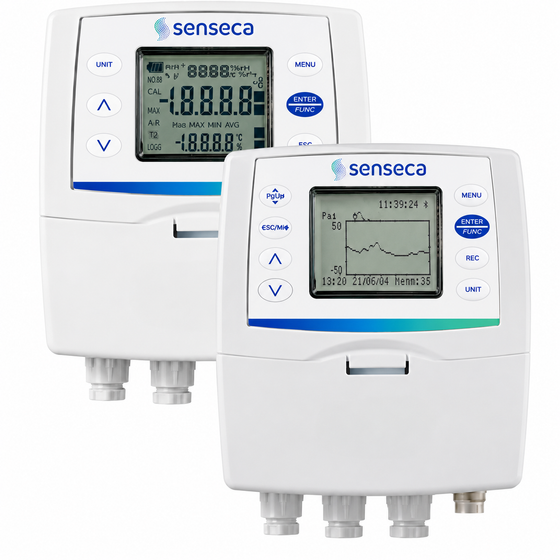

Data Logger Temperature and Humidity Transmitter / HD2717T
HD2717T Data Logger Temperature and Humidity Transmitter (Dew Point, Absolute Humidity, Mixing Ratio, Wet Bulb Temperature)
A temperature and humidity transmitter that can calculate, display, and output dew point, absolute humidity, mixing ratio, and wet bulb temperature.
This is a temperature and humidity transmitter equipped with a data logger function. In addition to analog output of current or voltage, it also offers RS232C/RS485 serial communication capabilities (available on all models) and a control ON/OFF output (only for models ending in -R). The HD2717T and HD2817T series feature interchangeable probes as a significant characteristic, allowing users to replace the probe with a spare without long interruptions to the process if the need arises. ◎ The HD2717T and HD2817T series temperature and humidity transmitters measure the following elements: Temperature Relative Humidity ◎ Based on the measurements of these elements, the following calculations are performed: Wet Bulb Temperature Dew Point Temperature Absolute Humidity Mixing Ratio ▼ High maintainability with interchangeable, high-precision temperature and humidity probes ▼ Logger function capable of storing 9,000 data points, with variable intervals from 1 second to 4 minutes ▼ Three types of probe shape variations: downward, rear, and separated ▼ RS232C/RS485 serial communication capabilities, analog, and relay output
Inquire About This Product
basic information
■Transmitter (@AC24V 20℃) Power Supply: DC/AC 24V-50/60Hz ±10% or AC 90-240V-50/60Hz (either specified) Average Power Consumption: 3W Data Storage Target Elements: Dew Point Temperature, Temperature, Relative Humidity, Absolute Humidity, Mixing Ratio, Wet Bulb Temperature Data Storage Interval: 1, 2, 5, 10, 20, 60 seconds, 2 or 4 minutes Operating Temperature/Humidity Range: -20 to +60℃ / 0 to 90% RH (without condensation) ■Input/Output Technical Data (@AC24V 20℃) [Input] ○Temperature Measurement Range: -50 to +200℃ Resolution: 0.1℃ Accuracy: ±0.25℃ ○Humidity Measurement Range: 0 to 100% RH Resolution: 0.1% RH Accuracy: ±1.5% RH (0 to 90% RH) at temperature range 15 to 35℃, ±2.0% RH (outside the above range) // ±(1.5+1.5% rdg)% RH at temperature range -50 to +15℃ and 35 to 150℃ [Output] Measured Physical Quantities: Temperature, Relative Humidity Calculated Physical Quantities: Dew Point Temperature, Absolute Humidity, Mixing Ratio, Wet Bulb Temperature Analog Output Types: 4-20mA, 0-20mA, or DC 0-10V, DC 2-10V
Price range
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
For more details, please contact us.
