Efficiently removes submicron bubbles even in high-viscosity materials. For production, research, and development.

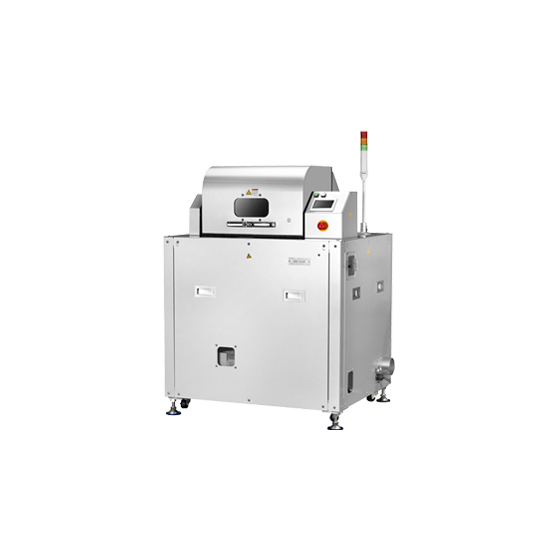

The "Awatori Rentaro ARV-5000" is a vacuum mixer that can perform large-scale stirring, mixing, dispersing, and degassing (deairing) all at once. Thanks to its self-rotation method and vacuum depressurization function, it prevents overflow during operation and enables high-precision degassing in a short time. By using adapters, barrels and syringes can also be degassed directly. 【Features】 ■ As a single type, it can be balanced using a balance dial, eliminating the need for dummy weights. ■ It allows vacuum settings in 0.1 kPa increments, enabling processing that considers saturated vapor pressure. ■ Various sensors enable real-time monitoring. ■ Its unique air-cooling mechanism suppresses temperature rise. ■ Demonstrations can be conducted in Tokyo and Osaka with materials provided by the customer. *For more details, please refer to the documentation. Feel free to contact us for inquiries. If you wish to request a demonstration, please apply through the inquiry form.
Inquire About This Product
Related Videos
basic information
【Product Specifications】 ◎ Vacuum-type rotary/revolution propeller-less mixing method ◎ Maximum load capacity: 5kg * This is the total mass when materials, containers, adapters, etc. are loaded into the cup holder. ◎ Standard container: 4L resin container * The actual stirring amount varies depending on the container, materials, and conditions, so please inquire for details. ◎ Voltage: 3-phase AC200V±10%, 50/60Hz ◎ Power consumption: Approximately 35VA (standby), maximum 4500VA (operating) ◎ Safety mechanisms: Door lock sensor, door sensor, vibration sensor, rotation sensor ◎ Transport lock mechanism: One location on each side (inside) * It will be shipped in a locked state. Please unlock it before use. ◎ Main body dimensions: H1540×W1050×D865(mm) ◎ Main body weight: Approximately 500kg * For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price information
-
Delivery Time
Applications/Examples of results
Stirring, dispersing, degassing, and deairing of materials.
catalog（4）
Download All Catalogs
News about this product（2）
Company information
THINKY Corporation has realized simultaneous processing of stirring and degassing through the concept of combining two types of rotation: rotation and revolution. The "Awatori Rentaro," a rotary-revolution mixer, was born as a device that can process these two opposing processes, "stirring" and "defoaming," which had long been considered separate steps in the material processing process, simultaneously and in a short time. Currently, Awatori Rentaro has grown into a diverse lineup, ranging from small tabletop models for laboratories to large-scale production models. We have received numerous inquiries from various fields both domestically and internationally. THINKY will continue to assist in solving material processing challenges and building a foundation for mass production with our unique material processing technology and know-how.
