The definitive large screen!! This newly designed screen can handle a wide range from high concentration to low concentration, allowing for large-scale processing with just one unit.

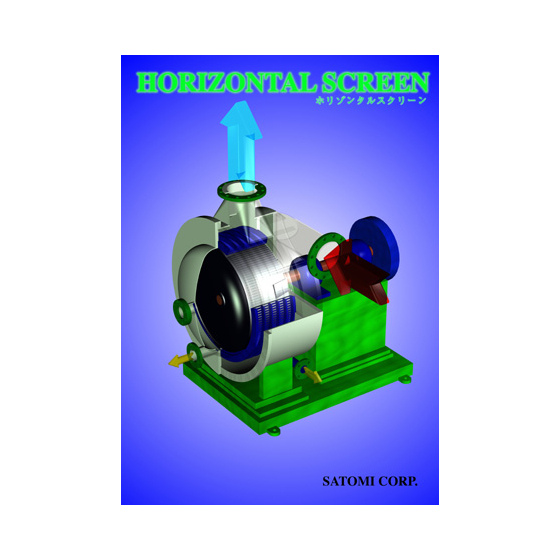

The paper material sent from the pump flows in through the entrance attached to the tangential section, forming a swirling flow, where heavier stones and metals are eliminated as primary tails from the outer periphery. This also serves as a protective role for the screen plate. The paper material that surpasses the weir flows into a large-diameter annular chamber with a small gap between the screen plate and the rotor, where it is separated into high-quality paper material and rejects. The high-quality paper material passes through the screen plate and is sent to the next process from an outlet with the same diameter as the entrance. The rejects pass through the space between the screen plate and the rotor, entering the swirling chamber on the opposite side of the entrance, forming a vortex, while lighter foreign substances create a vortex in the center and are discharged. Foreign substances with a difference in specific gravity are discharged as tails from the outer periphery.

Related Link - http://www.satomi.co.jp/

Inquire About This Product

basic information

【Features】 ○ Wide range from high concentration to low concentration ○ Can be used as both a coarse selection screen and a fine selection screen ○ High selection capability (capable of 0.07mm slit plates) ○ Small power consumption due to the function of the special rotor ○ No pulsation due to the special mechanism of the rotor ○ Extremely easy maintenance ○ Simply opening the door allows access to the primary and secondary sides without removing the screen basket, enabling cleaning ○ High safety mechanism ○ There is a protective mechanism to prevent damage to the basket plate before the raw material reaches the basket ○ Rational reject processing ○ Light tails and heavy tails are discharged separately ○ Processing technology suited to the nature of each tail (power screen, well separator, cube screen, pack pulper) ● For more details, please contact us.
