High-speed heating up to 1700℃ is possible, and it can also maintain that temperature!

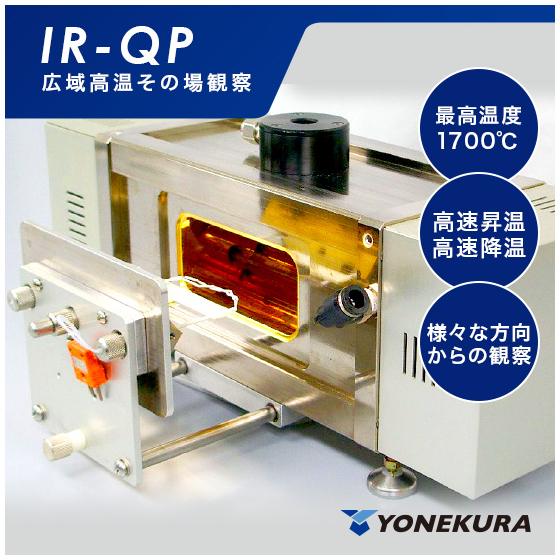

The "IR-QP1-4" and "QP2-4" are high-temperature observation devices capable of heating up to 1700°C through focused heating of samples only. They achieve rapid heating of over 1000°C/min with a low power consumption of just 4kW (8kW) using a halogen heater. By incorporating an observation window, the state of the sample can be monitored during heating. With a compact size of 120W x 115H x 282 (382)L mm (excluding protrusions), it can heat without taking up much space. The sealed structure of the furnace allows for vacuum and gas replacement, enabling heating in a clean environment due to lamp heating. For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Features】 ○ Capable of heating up to 1700°C through focused heating of samples only ○ Achieves high-speed heating of over 1000°C/min with low power consumption of just 4kW (8kW) using halogen heaters ○ Equipped with an observation window → Allows observation of the sample's condition during heating ○ Compact size → 120W×115H×282 (382)L mm (excluding protrusions) → Enables heating without taking up much space ○ Sealed structure inside the furnace → Capable of vacuum and gas operation → Standard equipped with vacuum inlet and gas inlet ○ Allows heating in a clean environment due to lamp heating ○ Rapid heating possible with optional rapid cooling mechanism ○ Can be combined with a microscope in a separate lineup ※ Direct viewing not possible at high temperatures ○ With an optional feature, it is possible to observe the sample during heating while attaching temperature and time for video recording 【Specifications】*Excerpt ○ Heating method: Infrared focused heating method ○ Temperature range: RT to 1700°C ○ Heating speed: Over 1000°C/min ○ Heater: 200V-1kW (200V-2kW) × 4 units ○ Required power supply: 200V-30A (45A) ● For more details, please contact us or download the catalog.
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ○ For use as a high-temperature observation device. ● For more details, please contact us.
