Digital Image Analysis Method Particle Size Distribution Measurement Device CamSizer Series
Digital Image Analysis Particle Size Distribution Measurement Device - CamSizer Series
Numerous successful implementations in measuring casting sand and metal powder! Faster and equivalent results compared to sieve tests! Image analysis-based particle size measurement device that can also measure particle shape.

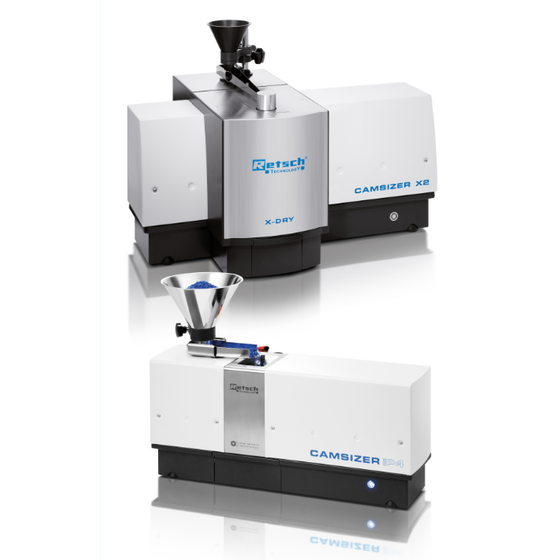

<Common Features of the CamSizer> - Analysis using two digital cameras [Our patented technology] - No need to change camera lenses according to the measurement sample size - Can produce results consistent with sieve tests - Unlike sieve tests, no cleaning work is required after measurement - Shape measurements include aspect ratio, roundness, left-right symmetry, surface roughness, and other particle transparency - From hundreds of thousands of particle information, particles can be searched by size and shape, with image and outline comparison available (particle library function) - Measurement results can be plotted against three parameters (3-D cloud function) - Can measure "Sloss & Krumbein roundness and sphericity" (new particle shape descriptor function) ■ CamSizer X2 Can choose from three types of dispersing media (air flow dispersion, free fall dispersion (dry), and wet dispersion) - Measurement range: 0.8μm to 8mm - Captures over 300 images per second, analyzes the size and shape of particles in the images within 1/260 seconds, allowing for the measurement of hundreds of thousands to millions of particles in just a few minutes ■ CamSizer P4 Only free fall dispersion (dry) is available. Can measure larger particles than the CamSizer X2 - Measurement range: 20μm to 30mm - Captures approximately 60 images per second
Inquire About This Product
Related Videos
basic information
Particles smaller than 10μm often tend to aggregate naturally, making particle size measurement difficult. With the CamSizer X2, if you want to know the size of the aggregation (secondary aggregation), you can measure it using the free-fall dispersion method. If you want to know the primary particle size by removing the aggregation, you can measure it using the air flow dispersion method, allowing for the measurement of both sizes.
Price range
Delivery Time
Applications/Examples of results
■Camsizer X2 There are various measurement examples such as pharmaceuticals, powdered foods, plastic powders, metal powders, abrasives, cement and sand, and fibrous materials. ■Camsizer P4 There are various measurement examples such as abrasives, coal and coke, catalysts, ceramics, salt and sugar, coffee beans, metal alloys, pharmaceuticals, proppants, refractory materials, and sand.
