Equipped with continuous alignment for FPC, efficient line configuration with a common carrier.
A mass production device that automatically performs FPC pickup, alignment, mounting, and temporary pressing. By using a common carrier for the ACF attachment and thermal pressing processes, an efficient line configuration that allows for smooth work handling is possible.
Inquire About This Product
basic information

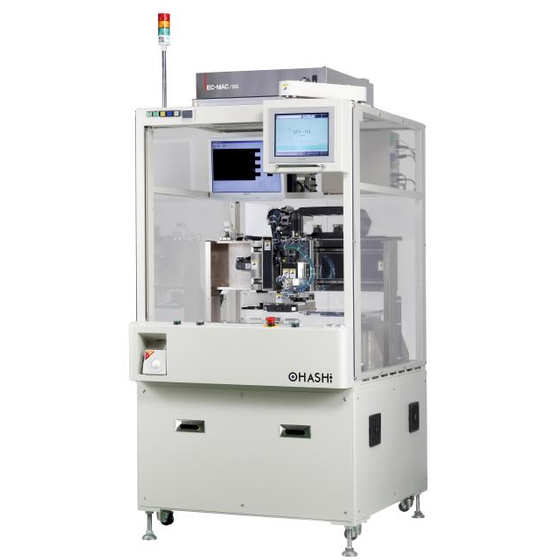

This is a semi-automatic device that automatically performs continuous alignment of FPCs on multiple workpieces or multiple locations of a workpiece. The workpieces, such as camera modules, are set on a carrier, and the FPC is placed in a dedicated tray. The FPC is continuously and automatically aligned on the workpiece. [Specifications excerpt] - Carrier size: Max. 250(W) x 400(D)mm - Tray size: Max. 250(W) x 400(D)mm - Mounting head size: Max. 40(W) x 12(D)mm - Number of units mounted: Max. 100
Price range
Delivery Time
Applications/Examples of results
Corresponding to the following processes: FOB/FOG/FOF/COG/COF
catalog（1）
Download All Catalogs
Company information
Since our founding, we have been comprehensively developing the design, manufacturing, and sales of microelectronics assembly equipment using precision sheet metal processing and ACF bonding technology. Since we began to commercialize the know-how cultivated in sheet metal processing as a tool for improving quality and productivity, we have consistently pursued business diversification and management independence through differentiated technologies. In the field of sheet metal processing, we are capable of vertical integration from product design and development to the assembly of finished products, not just contract processing, providing OEM and ODM (Original Design Manufacturing) products to our client companies. In the area of ACF bonding assembly machines, supported by the rapid development of the FPD industry, our products are adopted by many customers both domestically and internationally. In 1999, our tabletop COG assembly machine, which overturned industry norms, received the annual excellence award from the Nikkei newspaper. We take pride in the fact that the emergence of this tabletop machine has broadened the industry from being the domain of a few large companies to include many small and medium-sized enterprises. We have successfully developed the world's first "full-auto FOB line," and along with our manual tabletop machines and standalone semi-auto machines, we have evolved into a full-line manufacturer of ACF bonding assembly machines.
