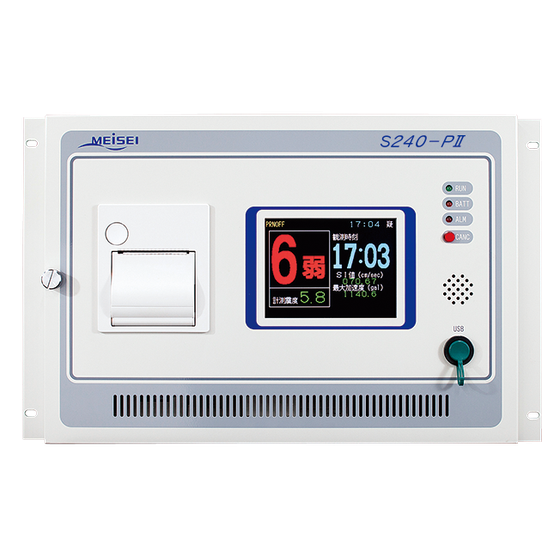

Accurately know the tremors experienced. This is a type that can connect up to six measuring units, certified by the Japan Meteorological Agency and used by local governments and public offices.
1. It measures with up to 6 sensors and displays and transmits earthquake information. 2. By connecting multiple sensors, control via "AND" or "majority vote" is possible. 3. Earthquake information and log data can be obtained via the USB port. 4. It comes standard with voice announcement output and display panel connection functions.
Inquire About This Product
basic information
1. Uses highly reliable sensors (force balance servo-type accelerometer) 2. Measurement range is ±3000 gal, with an option for ±4000 gal 3. Up to six measurement units can be connected (standard configuration is two units) 4. Calculates seismic intensity class, measured seismic intensity, SI value, maximum acceleration by component, etc. 5. Alarm contact output corresponds to thresholds for seismic intensity, acceleration, etc., and supports "AND" and "majority decision" logic, with BCD output for seismic intensity and acceleration (20 contacts) 6. Records in the latest earthquake recording unit and seismic intensity sequential recording unit to prevent overwriting of important data 7. Standard communication functions: network communication, serial communication, display communication 8. USB port 1.1/2.0 (1 port) 9. Supports over 2 hours during power outages (when two measurement units are connected) 10. Standard features include a touch panel color LCD and printer
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
1. Observations at dams requiring multiple measurement departments from municipalities and public agencies. 2. More reliable control of equipment shutdown and restart due to earthquakes in factories. 3. Disaster prevention measures such as evacuation and guidance in high-rise buildings (situation assessment for upper, middle, and lower floors).
Company information
MEISEI is the world's only comprehensive environmental measurement manufacturer that handles everything from development and design to manufacturing, construction, and maintenance in all fields from underwater to outer space.
