Next-Generation Precision Die Set
REALIZE Precision Die “Square-Post”
High-Precision & High-Durability REALIZE Original Square-Post Die Set
High-end design to maximize production efficiency, delivering industry-leading guide accuracy, high rigidity, and low vibration. It contributes to stable mass production by extending die life while maintaining exceptional precision. This product is a renewed version of a highly reliable and high-precision die set with a proven track record of extensive use by semiconductor and automotive manufacturers. Features ●High-precision needles are arranged on all four sides of the rolling section, ensuring smooth sliding motion and omni-directional rigidity. ●Compared with conventional round-post designs, the square-post structure dramatically enhances die rigidity. ●A patented needle retainer technology is employed to achieve highly accurate rolling motion. ●Special surface treatment is applied as standard to suppress wear of the needles, guide posts, and bushings. ●A newly developed spring-type bushing structure ensures long-term stability of needle preload. ●The retainer-supporting spring is designed not to contact the guide post, minimizing particle generation from contact surfaces. ●A wide range of types and die set sizes is available, featuring a compatible design that allows easy replacement in existing production lines. For more details, please refer to the PDF documentation or feel free to contact us.
Inquire About This Product
basic information

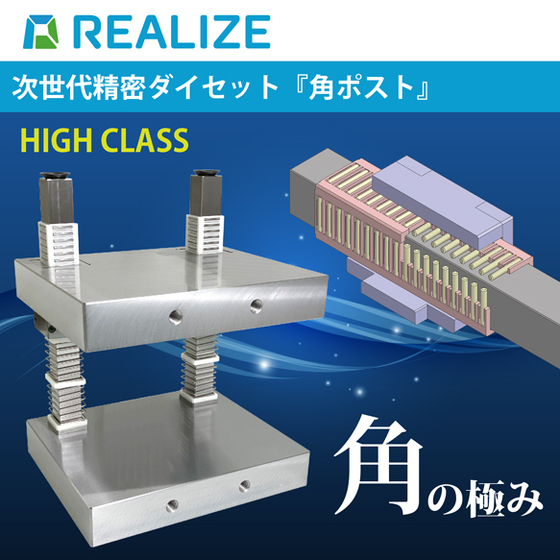

Two Die Set Types Available (1) Back-Post Type (Two Square Posts) (2) Four-Post Type (Four Square Posts) ●Plate Material: SS400 (Steel) / A7075 (Aluminum) ●Plate Size: Width: 250–500 mm Depth: 250–400 mm ●Guide Diameter: 25 mm / 35 mm ●Upper & Lower Plate Thickness: 40 mm / 50 mm ●Surface Treatment: None / Electroless Nickel Plating / Hard Anodizing (Aluminum only) For more details, please refer to the PDF documentation or feel free to contact us.
Price information
Contact Information Oita Sales Office — Die Set & Tooling — Phone (Main): +81-97-557-0011 Business Hours: 9:00–17:00 (Japan Time, excluding weekends and public holidays) Email: hsales@realize-fig.jp Please feel free to contact us for more information.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Applications ●Precision press processing ●Semiconductor manufacturing ●Automotive parts mass production lines ●Electronic components ●Connector components ●High-cycle production of micro-precision dies Track Record ●Semiconductor back-end processes (cutting / forming): power devices, BGA, QFP ●Tube container trimming ●Film cutting ●Various punching processes For more details, please refer to the PDF documentation or feel free to contact us.
