Automatically adjust attraction! Diffuse fine particles with a jet stream for sorting! Prevent aggregation!

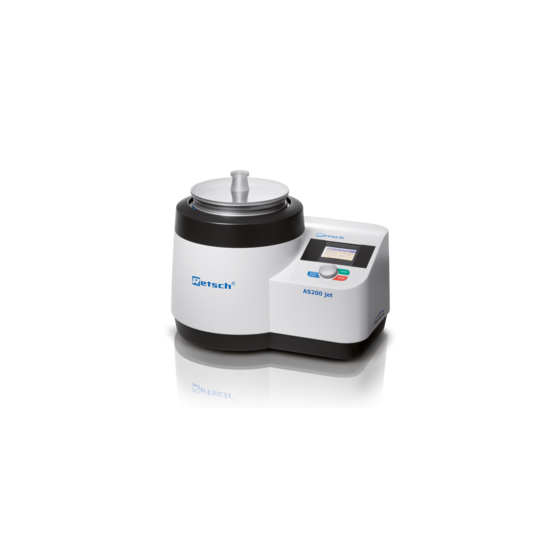

The "Air Jet Sieve AS200jet" is a device that disperses micron-sized particles while preventing agglomeration and classifying them. It can store up to 10 condition settings as an option. The suction power can be automatically adjusted, allowing for highly reproducible classification. Additionally, a silencer is included as standard to reduce operating noise, and it features a maintenance-free structure. It is a "vacuum suction type classifier" as listed in the section for crystalline cellulose in the Japanese Pharmacopoeia. 【Features】 ■ Classification that prevents agglomeration by dispersing with a jet air stream ■ Equipped with a reciprocating rotation function to prevent mesh clogging ■ Adjustable nozzle rotation speed ■ Digital setting of shaking conditions (nozzle rotation speed, time, suction power) ■ Suitable for sample monitoring in compliance with ISO9001 and other international standards ■ Samples can be collected using an optional cyclone ■ Compatible with the optional software EasySieve via RS232, suitable for classification evaluation and documentation *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Nature of the sample to be tested: Powder ■Measurement range: 10μm to 4mm ■Classification method: Dispersion using jet airflow ■Maximum input amount: 0.3 - 100 g ■Number of classifications: 1 (2 when using a cyclone) ■Nozzle rotation speed: Digital, 5 - 55 rpm (nozzle) ■Time display: Digital, 00:01 - 99:59 min ■Interval mode: Not available ■Suction power adjustment: 2,000 - 9,999 Pa / 20 - 99 mbar / 0.3 – 1.45 psi ■SOP setting available: 9 items / Quick start mode ■Dry classification: Yes ■Wet classification: No ■Serial interface: Yes ■Calibration certificate: Yes ■Usable sieve diameter: Φ203mm (Φ200mm possible with adapter) ■Maximum sieve height: 1 sieve (25 mm (1") / 50 mm (2")) ■Accessories: Cyclone kit / Automatic suction power adjustment device ■Voltage: 100-240 V, 50/60 Hz ■Power supply: Single phase *For more details, please refer to the PDF document or feel free to contact us.
Price information
-
Delivery Time
Applications/Examples of results
【Usage】 ■ Screening and classification 【Application Examples】 ■ Rubber, toner, plastic, chemical products, cosmetics, pharmaceutical raw materials, ■ Powder coatings, powdered detergents, pigments, minerals, ceramics, food, ... *For more details, please refer to the PDF document or feel free to contact us.
