Precise subdivision even with a large amount of samples! By connecting to a duct hose, it suppresses the scattering of powder!

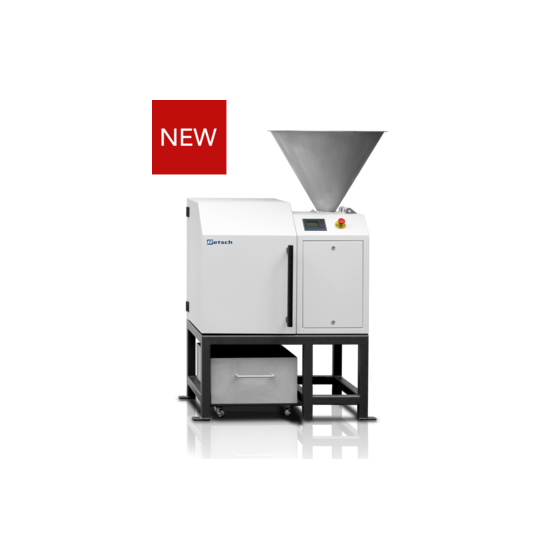

The "Sample Divider PT 300 XL" is a rotary divider suitable for the reduction and sampling of powdered or granular bulk materials. It can be connected to a duct hose, which helps to suppress the scattering of powder samples during the division process. The number of divisions can be changed by replacing the module, allowing for 6 to 10 divisions, and it is also possible to sample one portion of a sample while discarding the rest. 【Features】 ■ Precise division even for large samples ■ Modular structure ■ Rotation speed: 18 - 53 min-1 ■ Number of divisions: 6 - 10 (selectable division module) ■ Single division (continuous type: sample discharge) is also possible ■ Electromagnetic sample feeder: the chute is removable and easy to clean with a push-fit design *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Nature of the input sample: Bulk material ■ Input particle size*: ≤ 20 mm ■ Rotational speed: 18-53 rpm ■ Number of samples collected: Batch division: 6 / 8 / 10 (requires selection of division module) Continuous division: 1 (must be specified) ■ Time setting: Digital ■ Discharge sample container capacity: 40 l ■ Division capacity: 3,000 ml / 3,750 ml / 5,000 ml (varies by division module) ■ Sample feeder adjustment: Digital ■ Voltage: 240 V, 50 Hz ■ Power supply: Single phase ■ W x H x D: 1180 x 1510 x 750 mm ■ Main body weight: ~ 209 kg (including electromagnetic sample feeder) ■ Standards: CE *For more details, please refer to the PDF document or feel free to contact us.
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ■ Sampling and sample division 【Fields】 ■ Engineering / Electronics, Glass / Ceramics, Bio, Chemicals / Chemical Products, ■ Geology / Metallurgy, Materials Science, Construction Materials, Environment / Recycling, Pharmaceuticals / Drugs, Agriculture, Food 【Application Examples】 ■ Coffee, Cement clinker, Nuts, Fillers, Chemicals, Soil, Flour, ■ Construction materials, Sand, Seeds, Grains, Powdered detergents, Fertilizers, Iron powder, Minerals, ... *For more details, please refer to the PDF document or feel free to contact us.
