Precise fractionation even with large sample sizes! You can choose the fractionation module based on the splitting ratio and sample amount!

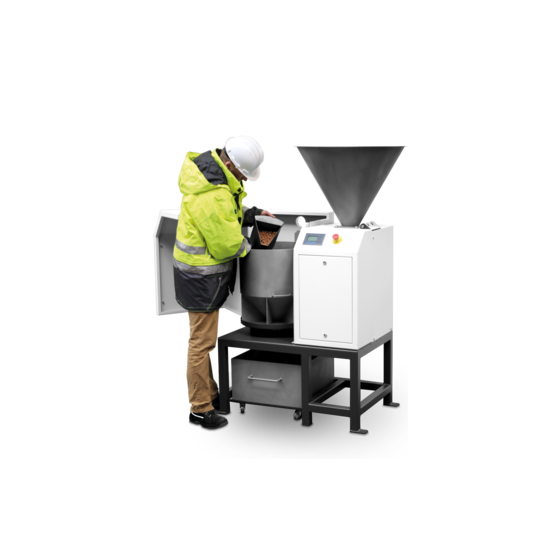

The "Sample Divider PT 600 XL" is a rotary splitter designed for sampling and reducing large quantities of powder or granular samples while minimizing dust generation. Samples of a specified quantity are continuously supplied through a chute by a sample feeder that can adjust the flow rate. It is possible to collect a single sample continuously or to collect multiple samples in batch mode by arranging several fan-shaped receivers in a circular pattern on the rotating platform. Additionally, this device operates according to internationally recognized sampling protocols, ensuring representative and reproducible test results. 【Features】 ■ Precise subdivision even for large samples ■ Modular structure ■ Rotation speed: 18 - 53 min-1 ■ Number of subdivisions: 6 - 10 (selectable subdivision module) ■ Single subdivision (continuous: sample discharge) is also possible ■ Electromagnetic sample feeder: chute is easy to remove and clean with a push-fit design *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Nature of input sample: Bulk material ■Input particle size: ≤ 20 mm ■Rotation speed: 18-53 rpm ■Number of samples collected: Batch division: 6 / 8 / 10 (modular division selection required) Continuous division: 1 (specification required) ■Time setting: Digital ■Discharge sample container capacity: 70 l ■Division capacity: 6,000 ml / 7,500 ml / 10,000 ml (varies depending on the division module used.) ■Sample feeder adjustment: Digital ■Voltage: 240 V, 50 Hz ■Power supply: Single phase ■W x H x D: 1180 x 1620 x 750 mm ■Body weight: ~ 230 kg (including electromagnetic sieve shaker.) ■Standard: CE *For more details, please refer to the PDF document or feel free to contact us.
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ■ Sampling and sample division 【Fields】 ■ Engineering / Electronics, Glass / Ceramics, Bio, Chemicals / Chemical Products ■ Geology / Metallurgy, Metallurgy, Construction Materials, Environment / Recycling, Pharmaceuticals / Drugs, Agriculture, Food 【Application Examples】 ■ Coffee, Cement clinker, Nuts, Fillers, Chemicals, ■ Soil, Flour, Construction materials, Sand, Seeds, Grains, Powder detergents, Fertilizers, Iron powder, Minerals, ... *For more details, please refer to the PDF materials or feel free to contact us.
