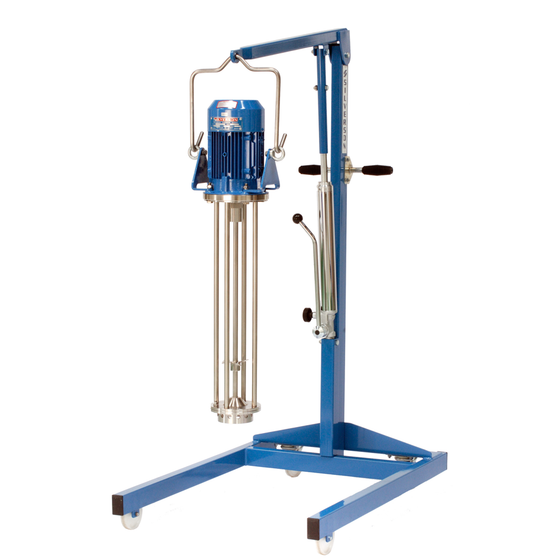

High Shear High-speed Dispersion Batch Mixer
BX, DX, EX, FX, GX10, GX20, 700X, HX10, HX30, JX, KX
A variety of models available according to processing volume! A mixer that can broadly meet extensive needs!
The "Batch Mixer" is a vertical high-shear mixer that meets diverse needs such as mixing, emulsifying, homogenizing, breaking down, and dissolving. You can select the optimal work head according to your application and purpose. Its robust construction and simple design make cleaning and parts replacement easy. It can be used for a wide range of applications with just one machine. 【Features】 ■ Suitable work heads can be selected for individual applications ranging from a few liters to a maximum of 30 tons. ■ Simple and robust design. ■ Easy to clean using CIP (Clean-In-Place) and disassembly cleaning. ■ Custom specifications are available according to applications. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Other Features】 ■ Designed to accommodate a wide range of needs and tasks ■ Processing capacity ranges from 5 to 30,000 liters ■ Requires minimal maintenance such as cleaning and parts replacement *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■Acceleration of mixing and stirring, emulsification, homogenization ■Dispersion of slurry liquids, dispersion of gelling agents, disintegration of agglomerates, etc. *For more details, please refer to the PDF document or feel free to contact us.
Line up（11）
| Model number | overview |
|---|---|
| BX | 0.75kW 3000rpm |
| DX | 1.5kW 3000rpm |
| EX | 3kW 3000rpm |
| FX | 4kW 3000rpm |
| GX10 | 7.5kW 3000rpm |
| GX20 | 15kW 3000rpm |
| 700X | 11kW 1500rpm |
| HX10 | 7.5kW 1000rpm |
| HX30 | 22kW 1500rpm |
| JX | 15kW 1000rpm |
| KX | 30kW以上 1000rpm |
