From the disintegration of solid materials to the stirring of high-viscosity liquids! Technical documentation on bottom entry mixers.

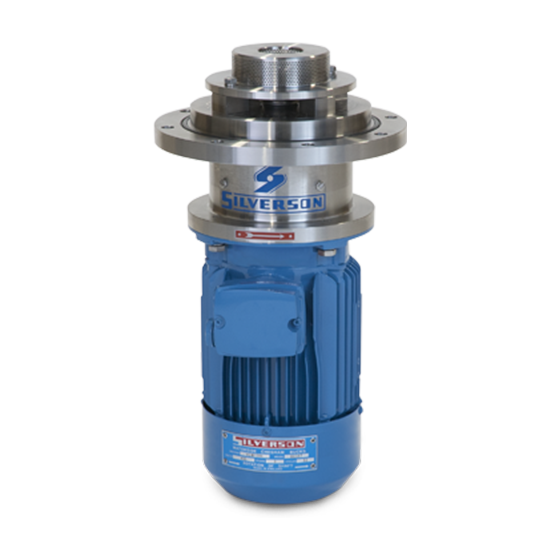

Silverson’s Bottom-Entry Mixer offers excellent cleanability, making it ideal for applications requiring high sanitary standards. It not only excels at breaking down solids but is also perfect for incorporating powders that tend to float on the liquid surface. For high-viscosity products, it can be combined with a low‑speed anchor agitator or scraper. This powerful combination—homogenization with a bottom‑entry mixer × circulation support with an agitator/scraper —is widely used in the production of high‑viscosity cosmetics, pharmaceuticals, and food products. As with other Silverson rotor/stator mixers, the stator, disintegrating head, and screens can be easily interchanged. A single unit can handle a wide range of mixing processes. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
Related Videos
basic information
Technical Information ■ Processing Capacity: 5 – 7000 L ■ Materials: The wetted parts are made of 316L stainless steel as standard, but fabrication using special materials is also available. ■ Motor Specifications: Standard models are equipped with a totally enclosed fan-cooled motor suitable for wash-down environments. Explosion-proof types are also available. Optional stainless-steel motors and inverter-compatible specifications can be provided. ■ Mounting Method: Stainless-steel round flange ■ Seal: Single or double mechanical seal ■ Pressure Resistance: From absolute vacuum up to 1 MPa; higher-pressure specifications can be supported upon request. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Line up（7）
| Model number | overview |
|---|---|
| BE243 | 0.75kW |
| BE275 | 1.1kW |
| BE387 | 2.2kW |
| BE425 | 4kW |
| BE450 | 7.5kW |
| BE500 | 15kW |
| BE600 | 22kW |
catalog（2）
Download All Catalogs
Company information
For over 75 years since its founding, Silverson has continued to produce high-quality mixers that meet the demands of manufacturing sites around the world as a dedicated manufacturer of high-shear high-speed dispersers. Having grown alongside customers in over 150 countries in industries such as food, pharmaceuticals, cosmetics, lubricants, and petrochemicals, Silverson is now recognized as a top manufacturer of high-shear high-speed dispersers and has become the standard equipment specified by many of these companies. The secret to Silverson's esteemed reputation lies in its unwavering commitment to understanding and responding to customer needs from the user's perspective. By continuously addressing the requests from many users, including some of the world's leading companies, and dedicating itself to research and development of the latest technologies in high-shear high-speed dispersers, Silverson is able to promise higher quality and technology through the accumulation of further experience and know-how. Today, Silverson operates as a true international company with a sales network spanning over 50 countries worldwide, including not only the UK but also Europe, North and South America, Asia, and Africa.
