Temperature and Humidity Sensor “PAL-Temp”｜Easy Visualization with Modbus and IoT Compatibility

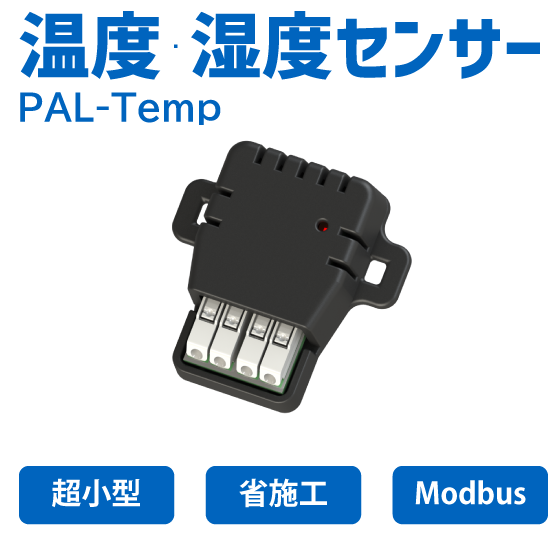

PAL-Temp
Easy Installation and Integration｜Visualize Temperature and Humidity Instantly
PAL-Temp is a compact IoT sensor equipped with built-in communication functionality, capable of measuring both temperature and humidity. It supports Modbus RTU communication, allowing seamless integration with a wide range of upper-level devices. Key Features 1. Modbus RTU Protocol for High Compatibility By adopting the widely used Modbus RTU protocol, PAL-Temp offers excellent compatibility and can be easily incorporated into existing systems and equipment. 2. Simple Installation with Cable Ties Installation is completed simply by securing the sensor with cable ties at the desired location. This enables easy deployment even in systems that are already in operation. 3. Compact Design with Built-in Communication Integrating communication functionality within the sensor itself enables a compact and lightweight design. PAL-Temp can be installed flexibly without constraints on location. System Integration with PAL-Plus Unit By combining PAL-Temp with the PAL-Plus Unit, which includes signal conversion to Modbus TCP and power supply functionality, users can build monitoring systems that are both space-efficient and cost-effective. Related Products We also offer a lineup of current sensors such as:PAL-Plus / PAL-Plus High-Capacity Model These sensors are capable of measuring AC current and are equipped with built-in communication features. Contact & Support For more details, please refer to our downloadable materials or feel free to contact us.
Inquire About This Product
Related Videos
basic information
PAL-Temp Sensor – Specifications Indicator Display The sensor is equipped with LED indicators to show power status and alarm conditions: Green: POWER (when powered) Blinking Green: Communication in progress Red: ALARM (when an alert is triggered) Blinking Red: Pre-alarm condition Terminal Block Specifications Applicable wire cross-sectional area: 0.2–0.75 mm² Maximum insulation outer diameter: φ2.2 mm Strip length: 7–9 mm Wiring Specifications UL1007, AWG24–18 4-wire connection: DC+5V, GND, RS485(+), RS485(–) Power Supply Operating voltage: DC 5V Current Consumption During communication: 50 mA Idle state: 10 mA Measurement Range Temperature: 0.0–50.0°C Humidity: 5.0–90.0% RH Measurement Accuracy Temperature: ±1.0°C Humidity: ±6.0% RH Dimensions 43 mm × 43 mm × 13.5 mm Configuration Tool A dedicated configuration kit, PAL-Temp Setting Kit, is available for adjusting sensor parameters via PC connection. For detailed specifications or technical inquiries, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Usage Locations】Factory, Office, Machine Room, etc. 【System Construction Examples】 | Want to visualize easily | Build a centralized monitoring system with dedicated manager software × PALTemp | Want to visualize in the cloud | Easy construction with IoT gateway, cloud × PAL-Temp | Want to utilize PLC for visualization | Build a monitoring environment using existing systems with PLC × PAL-Temp For more details, please download the materials or feel free to contact us.
Detailed information
-
◎Centralized monitoring system using dedicated manager software | Want to visualize easily | Dedicated manager software × PAL-Temp
-
◎Cloud Monitoring |Want to visualize in the cloud|IoT Gateway - Cloud × PAL-Temp
-
◎Monitoring system utilizing existing systems | Want to visualize using PLC | PLC×PAL-Temp
-
Example of installation on a rack door
