Pinhole Detector "TRS-250/70"

Introducing pinhole detectors weighing 5.1kg and 4.1kg! They come with an ABS-made telescopic probe.

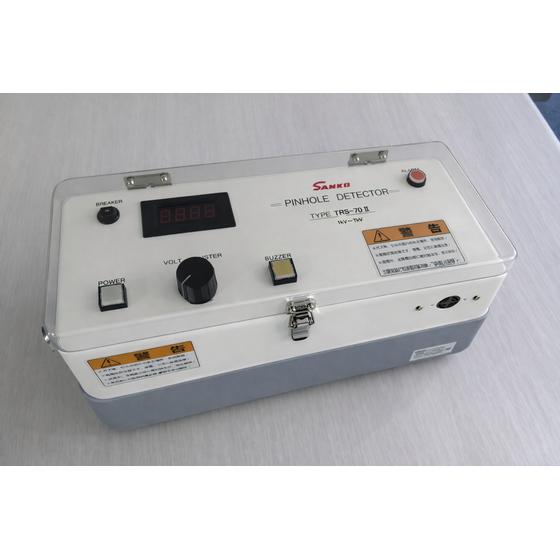

Introducing the pinhole detector 'TRS-250/70', which operates on a low-frequency high-voltage pulse discharge method. The "TRS-250" has a detection voltage range of 5 to 25 kV (peak value) and a weight of 5.1 kg. The "TRS-70" has a detection voltage range of 1 to 7 kV (peak value) and a weight of 4.1 kg. Standard accessories include a probe storage case, a 5m ground wire, a 5m safety switch wire, and a 2m power cord. 【Specifications (excerpt)】 <TRS-250> ■ Method: Low-frequency high-voltage pulse discharge ■ Detection voltage: 5 to 25 kV (peak value) ■ Power supply: AC100V, 50/60Hz, 20VA ■ Alarm method: Lamp, buzzer ■ Target coating thickness: 1mm or more ■ Operating temperature range: 0 to 40°C (must not condense) ■ Dimensions: 370(W) × 190(H) × 150(D) mm ■ Weight: 5.1 kg *For more details, please refer to the PDF document or feel free to contact us.
