It is possible to measure while a person is riding a bicycle, equipped with a correction function to achieve low-noise measurements.

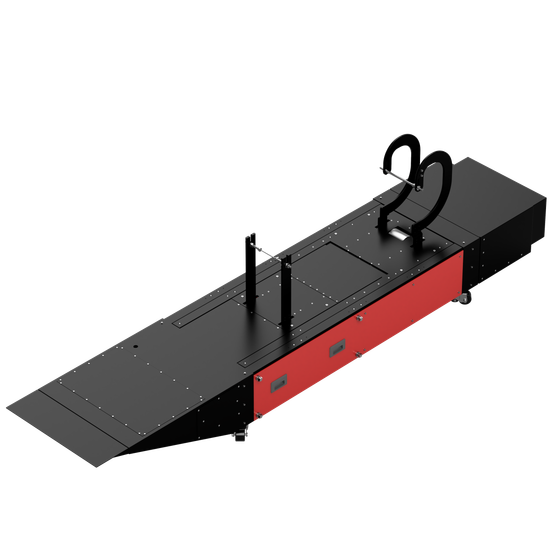

This is a measuring platform for measuring the air resistance (drag) of bicycles. It comes with adjustable fixtures that can be tailored to the bicycle's wheelbase and wheel size. Measurements can also be taken while a person is riding or pedaling. Additionally, options for automatic roller rotation and load devices are available. The dedicated PC software includes a correction function to eliminate noise caused by the rider's center of gravity movement.
Inquire About This Product
basic information
Model Name: Bicycle Measurement Platform (Single Axis) Load Capacity: 120kg Measurement Resolution: 0.1g Maximum Measurement Value (Flow Direction): 120kgf Weight: 250kg Wheel Rotation Motor Speed: Equivalent to 55km/h Maximum Load of Load Device: 2000W *Note 1: This is the theoretical physical value of the mounted sensor. *Note 2: This is an option.
Price information
Please feel free to contact us. We will provide you with a quote.
Delivery Time
Applications/Examples of results
Measurement of aerodynamic drag for competitive bicycles Measurement of aerodynamic drag for bicycle tires and accessories
Detailed information
-
The bicycle measurement platform features a robust design that can withstand intense pedaling by a person without breaking, while also providing precise drag measurement capabilities.
-
You can also measure the wheel alone. If you have added the rotation motor option, you can obtain data such as drag while rotating the wheel.
-
Each measuring table is assembled while accurately aligning on a large flat surface.
