Adopts a high-precision microstep motor! Stable measurements are possible from ultra-low speed to high speed.

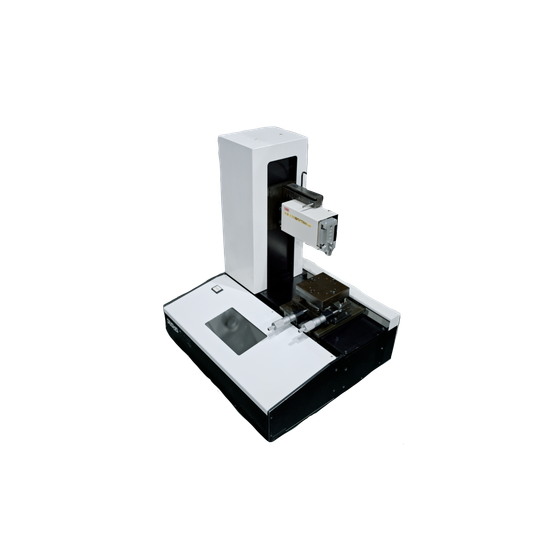

The "SS-30WD" is a multi-type strength testing machine that can accurately measure various strengths such as wire pull, die shear, and peel strength. By simply changing the installation direction of the load cell, it is possible to handle pull, peel, push, and shear tests with a single unit. By adopting a high-precision micro-stepping motor, stable measurements can be achieved from ultra-low speed to high speed. 【Features】 ■ Capable of handling pull, peel, push, and shear tests with one unit ■ Equipped with a high-precision micro-stepping motor ■ Stable measurements possible from ultra-low speed to high speed ■ The dedicated data processing software automatically captures load fluctuation graphs immediately after measurement ■ Custom solutions tailored to workpieces and measurement content, such as jigs and tools, are available *For more details, please refer to the related link page or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Load measurement accuracy: ±0.1% full scale ■Load measurement range: 50kg MAX (each range supported by load cell replacement) ■Measurement stroke: X-axis 100mm, Z-axis 100mm ■Stroke setting range: 1μ (for both X and Z axes) ■Measurement speed: 0.006 to 1mm/sec ■Device dimensions: 485 (W) × 435 (D) × 565 (H) mm ■Device weight: approximately 75kg ■Power supply: AC100V 1A *For more details, please refer to the related link page or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Share Test ■Pull Test ■Peel Test ■Push Test *For more details, please refer to the related link page or feel free to contact us.
