The frequency range is DC to 65GHz! The connector part has a right angle, maintaining stable electrical performance.

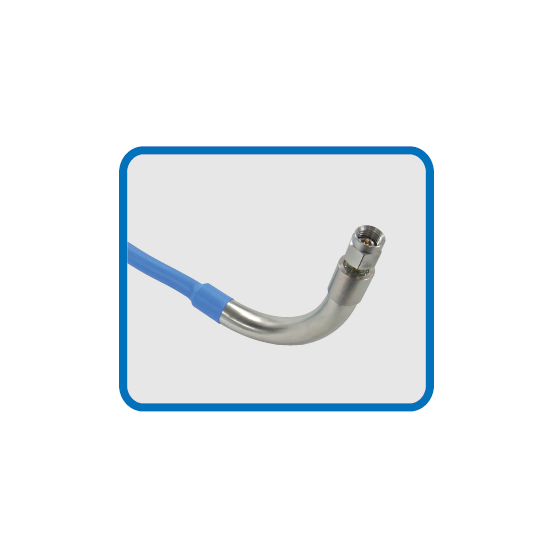

This product is a cable assembly developed for millimeter-wave measurement applications. We have added a "right-angle type" to our unique soft-rigid cable series, which is based on semi-rigid cables. Due to its right-angle structure, it is suitable for connection with probes. 【Features】 - The cable structure is semi-rigid, providing stable high-frequency characteristics. - Lightweight and formable, making it easy to handle. - The right-angle section uses SUS304 material to protect the inner conductor and maintain stable characteristics. - The right-angle structure is ideal for connection with probes. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Applicable Cable: R2B (SP-20R) ■Characteristic Impedance: 50Ω ■Outer Conductor: Oxygen-free Copper Seamless Tube ■Inner Conductor: Silver-plated Copper Clad Steel Wire ■Insulator: Low Loss PTFE ■Outer Sheath: Polyolefin ■Operating (Storage) Temperature Range: -55 to 105℃ ■Outer Sheath Outer Diameter: φ6.3mm ■Light Angle Part: SUS304 Nickel Plated *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ For high-frequency measurement (between the measuring instrument and the object being measured) *For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Waka Manufacturing Co., Ltd. has developed connectors that support millimeter waves at 110GHz. "Towards higher frequencies" is Waka Manufacturing's development policy for coaxial connectors. The expertise pursued in high frequency is applied to all connectors as high reliability. We are also constantly working on enhancing our new lineup and accommodating user custom-made requests. Waka Manufacturing will continue to challenge itself in pursuit of even higher frequencies and reliability in line with the advancement of electronics.
