Supports traceability management by converting motor current to torque value at torque-up (Free dedicated software available on Nitto Kohki website)

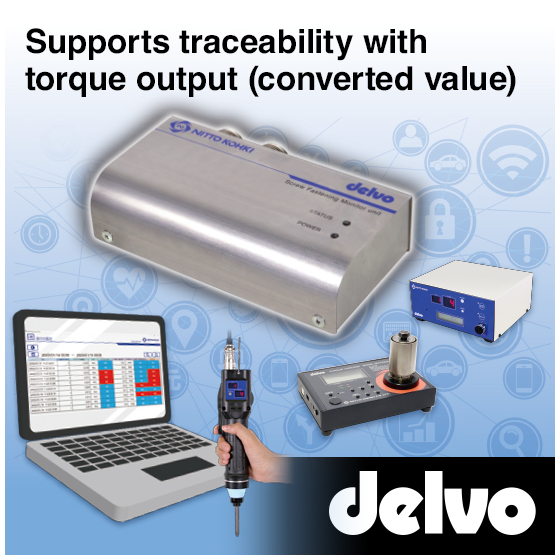

The DTM10/DTM45 are screw fastening monitors designed for use with delvo Brushless Type C Series. They convert the motor current to torque value at torque-up, enabling judgment of output torque (converted value) and pass/fail evaluation of screw fastening time. Data can be sent to external devices such as PCs or PLCs, and free dedicated software is available on our website. Features: ■ Converts motor current to torque value at torque-up ■ Sends data to external devices such as PCs and PLCs ■ Free dedicated software available for download ■ Pass/fail judgment based on output torque (converted value) and fastening time ■ Display language switchable (Japanese / English) *For more details, please refer to the PDF catalog or feel free to contact us.
Inquire About This Product
Related Videos
basic information
How to measure output torque (converted value): 1. Configure the communication settings for Screw Fastening Monitor and Torque Checker. 2. Measure the torque conversion factor for each channel. 3. Set output torque judgment values and fastening time upper/lower limits for each channel as needed. 4. Measure torque using the Torque Checker and check for any differences in the values between the software display and the Torque Checker. 5. Perform pass/fail judgment based on output torque (converted value) and fastening time. 6. Fastening data logs can be reviewed. For more details, please refer to the PDF catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
The NITTO KOHKI Group supports comfortable living and a prosperous future across a wide range of fields—from construction sites to the aerospace industry and global environmental maintenance projects. We respond to increasingly diverse needs with outstanding engineering that promotes efficiency and labor-saving. Our unique technologies are developed from the user’s perspective, creating convenient and innovative tools that serve as bridges to the next generation.
