Compact and Lightweight – Approx. 500 g for chamfering machined and molded parts.*Video available

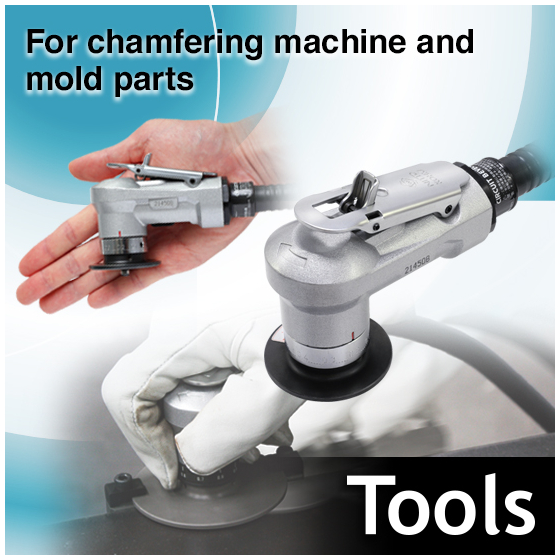

The "Circuit Beveler CB-01" is a pneumatic radial chamfering tool capable of chamfering pre-drilled holes of φ6.8 mm for M8 screws. It is compact and lightweight, with a body weight of 500 g. This tool is suitable for chamfering machine parts and mold components. Additionally, it features indexable inserts (usable on three sides) to achieve a smooth finish, and dedicated inserts for chamfering stainless steel and mild steel are also available. Features: ■ Capable of chamfering pre-drilled holes of φ6.8 mm for M8 screws ■ Compact and lightweight, body weight 500 g ■ Equipped with indexable inserts (usable on three sides) ■ Ideal for chamfering machine parts and mold components This is our original product. Please be careful of fake or copied products on the market. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
Specifications: - Air Pressure: 0.6 MPa - Air Consumption (No-load): 0.15m³/min - Free Speed: 28000 min⁻¹ - Chamfering Capacity Mild Steel: Up to 1 mm Chamfer or 1 mm Radius Stainless Steel: Up to 0.5 mm Chamfer - Chamfer Angle: 45° - Minimum Workpiece Thickness: 1.5 mm (0.5 mm Chamfer) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Applications] - Chamfering of Machine Parts and Mold Components For more details, please refer to the PDF catalog or feel free to contact us.
