One device, three functions! For polishing work in recessed areas and corners with three types of pad shapes! *Video available

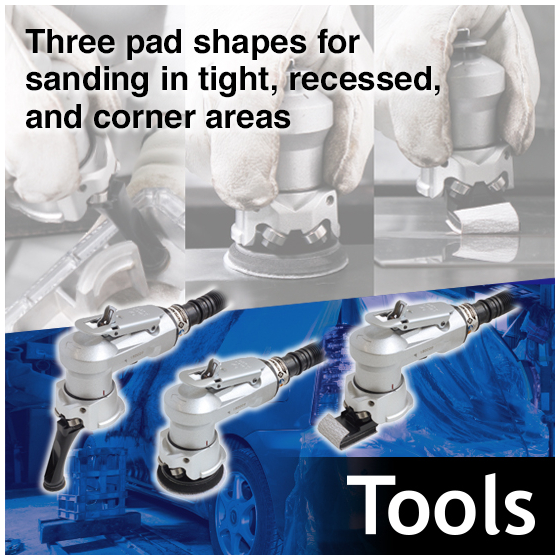

We would like to introduce our air-powered polishing machine, the "Compact Multi Sander CMX-20." It features three types of pad shapes: "Finger Pad," "2” Pad," and "Square Pad," making it ideal for polishing tasks in tight spaces, recessed areas, and corners. By turning the adjustment valve, you can change the airflow and adjust the rotation speed. Additionally, the pads can be easily replaced using a 10mm wrench and a 4mm hex wrench. 【Features】 ■ Lever type ■ Compact ■ Lightweight ■ Low vibration *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Operating Pressure: 0.6MPa (kgf/cm²) ■Air Consumption: 0.15m³/min ■Orbit Diameter: φ2mm ■Body Weight: 0.53 (excluding pad) ■Standard Accessories ・Hexagon Bar Wrench 4: 1 piece ・Ultra-thin Wrench SNT1012: 1 piece ・2” Pad: 1 piece ・Finger Pad: 1 piece ・Sandpaper #80 2” Velcro: 2 sheets, etc. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Automotive Bodywork Painting - Sanding putty for small scratches, narrow areas inside doors, etc. ■ Sheet Metal - Blending scratches from transport, finishing oxidation marks from spot welding. ■ Painting - Removal of paint drips and puddles, finishing removal of debris caught in the paint. ■ Die-Cast Parts - Finishing rough surfaces of parts due to mold aging, finishing standing burrs from ejector pins. ■ Machined Parts - Removal of cutter marks from recessed bottom surfaces, removal of slight steps during tool changes. *For more details, please refer to the PDF document or feel free to contact us.
