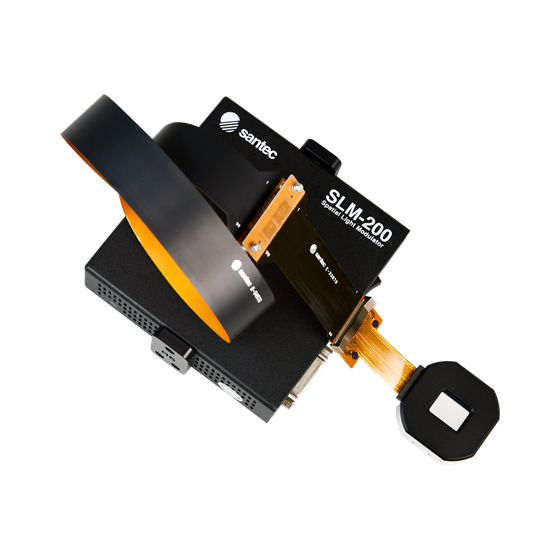

Easy-to-use GUI included! Reflective spatial light modulator
Our reflective LCOS (liquid crystal on silicon) is an ideal spatial light modulator for high-resolution applications. With a resolution of WUXGA (1920 x 1200), 10-bit (1024 levels), and excellent phase stability (~0.001π rad.), it provides an optimal solution for numerous applications that require precise spatial light modulation. 【Features】 ■ Resolution: WUXGA (1920 x 1200) ■ 10-bit (1024 levels) ■ Excellent phase stability (~0.001π rad.) ■ Frame rate: x2 (120 Hz) ■ Memory function ■ Trigger input & output
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Wavelength range: 450–1600 nm ■Panel size: (H) 15.36 x (V) 9.60 ■Panel resolution: (H) 1920 x (V) 1200 ■Pixel size / pitch: 7.8 / 8.0 ■Control software: GUI software and SDK for Windows For further details, please refer to the catalog.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Light beam manipulation ■ Wavefront correction of light ■ Pulse/beam shaping ■ Diffractive optics ■ Optical manipulation ■ Control of light phase patterns
catalog（1）
Download All Catalogs
Company information
Santec has been manufacturing optical components, laser products, and optical measuring instruments for over 40 years, responding to the stringent quality demands of our customers in the optical industry. Additionally, by constantly seeking innovation and meeting customer requests, Santec has introduced numerous new optical-related products to the market. Our journey towards the creation of the ideal world of light, "OPTOPIA," which is our management philosophy, also involves minimizing the timeline from product concept to commercialization.
