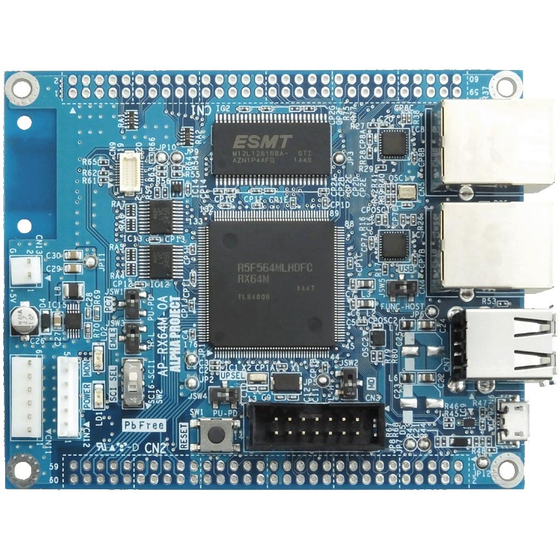

It is a board computer equipped with the RX64M from Renesas Electronics.
The AP-RX64M-0A is equipped with the RXV2 core RX64M and features connectors for Ethernet 2ch, USB, and CAN communication.
Inquire About This Product
basic information
- Equipped with RXv2 core "RX64M (R5F564MLDDFC)" - Operating frequency up to 120MHz (24MHz crystal oscillator) - Large capacity memory: Flash ROM (4MByte for program storage, 64KByte for data storage), RAM 512KByte, SDRAM 16MByte - Two channels of 10/100BASE-TX compatible Ethernet ports - Two channels of USB Host (Full-Speed compatible) - One channel each of USB Function (Full-Speed compatible) - Capable of connecting a 4.3-inch QWVGA LCD kit "LCD-KIT-D01" with a capacitive touch panel to the LCD I/F connector - Capable of connecting a CMOS camera module "VS-CAM-01" to the camera I/F connector - Capable of connecting WM-RP/BT-CB series to the wireless module I/F connector - Various interface converters can be added to the serial I/F connector - CAN transceiver adapter can be connected to the CAN communication connector - Equipped with a connector for on-chip emulator - Equipped with an external expansion connector - All circuit diagrams are publicly available - Sample programs are publicly available
Price information
¥18,800 (including tax ¥20,680)
Price range
P2
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Ideal for various prototypes and small lot products.
Company information
Our company is engaged in the development of microprocessor application systems, electronic circuit design and manufacturing, firmware development, and PC software development, providing comprehensive solutions to challenges such as the diversification of customer needs, shortening product cycles, and cost reduction.
