Tohoku Univ. Technology：Synthesis method for position controllable transition metal dichalcogenide: T15-167
Avoid size dispersion, able to synthesize single crystal

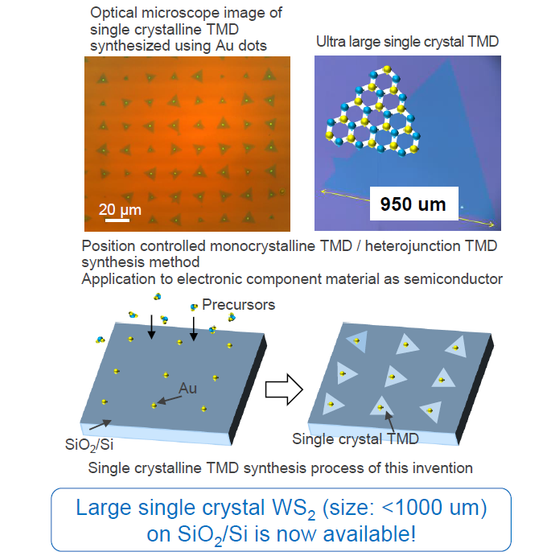

Transition metal dichalcogenide (hereinafter “TMD”) is an atomic material layer with thickness of an atom, which has a bandgap in the visible range and behaves as a semiconductor. The conventional synthesis method is the chemical vapor deposition (CVD) where TMD is synthesized at random position on the circuit board. The position control of the synthesis is essential in order to apply TMD on different devices but the conventional synthesis method doesn’t allow that. The synthesis method with controlled position is also proposed but a polycrystalline TMD is synthesized and it is not convenient to apply to different devices. This invention solves above issues and can provide a synthesis method of monocrystalline TMD or heterojunction TMD by controlling its position using micro dots as a growing core while limiting the size dispersion.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
