Tohoku University Technology: High-Efficiency MgSn TE Material: T20-641
zT > 0.8 with MgSnThermoelectric Material

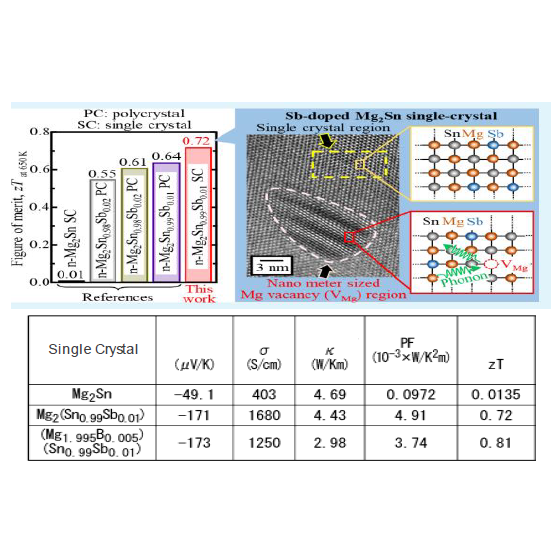

Thermoelectric (TE) materials, which have the ability to convert heat into electricity, play a significant role in the utilization and management of thermal energy. Mg2Sn is a potential thermoelectric (TE) material that exhibits environmental compatibility since it is not-toxic and .not contains rare materials. However, as existing Mg2Sn materials have low electric conductivity and high thermal conductivity, it results in low zT value. This invention is related to Mg2Sn material contains Sb and B as doping materials, and Mg vacancies with high Power Factor and low thermal conductivity, which contribute to improve zT value. zT > 0.8 are achieved by our materials mentioned above.
Inquire About This Product
basic information
For more details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For more details, please contact us or refer to the PDF.
