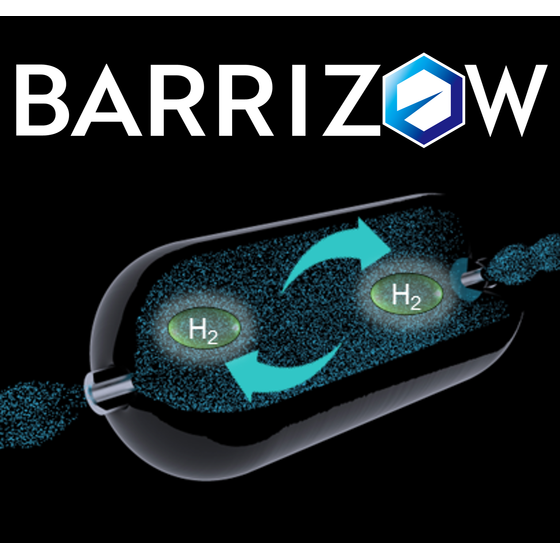

We have developed a resin with high gas barrier properties against hydrogen, suitable viscosity for various tank molding methods, and a shelf life for storage!
【Features】 - It has good impregnation and moldability for carbon fibers, resulting in excellent mechanical properties. - Due to its high gas barrier properties, it is expected to reduce the amount of gas leaking from containers and allow for thinner barrier layers and linerless designs. - We have developed grades suitable for filament winding (FW) molding, RTM molding, and more. It can be provided as tow prepreg or resin. It can also be used for coating applications. - It is compatible with various gases, including oxygen, nitrogen, and argon, in addition to hydrogen. *The resin composition can be adjusted according to molding conditions. Please consult us first.
Inquire About This Product
basic information
For more details, please visit our company website or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Uses】 It can be applied to the FRP layers of various high-pressure containers, including gas tanks, such as hydrogen containers mounted on drones and fuel cell vehicles (passenger cars and large vehicles).
Line up（4）
| Model number | overview |
|---|---|
| P1000 | ■Dry filament winding tow pre-preg ■Features: High viscosity, pot life |
| W1000 | ■Matrix resin for wet filament winding ■Features: Pot life, elongation |
| W2000 | ■Matrix resin for wet filament winding ■Features: Low water absorption |
| R1000 | ■Matrix resin for RTM molding and infusion molding ■Features: Fast curing, low viscosity |
