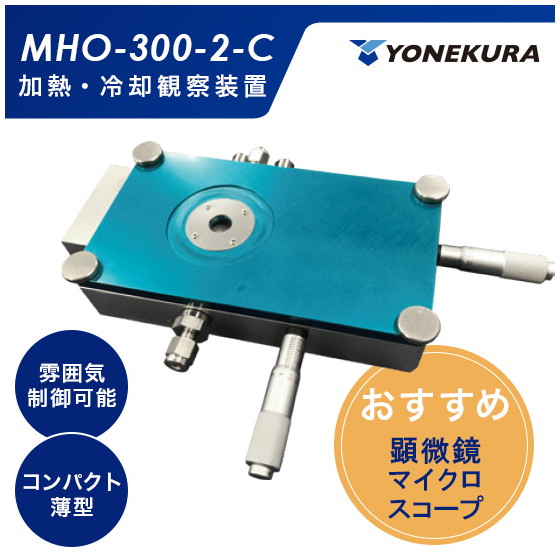

"Heating and Cooling Observation Device MHO-300-2" Just place it on your microscope! Compact and slim / Atmosphere control available.
Simply place it on the stage of your microscope or micro-scope to observe changes from -100°C to 300°C in real-time. In a hermetically sealed furnace, heating and cooling can be performed under various vacuum inert gas atmospheres. 【Points】 ▮ Flexible temperature control performance With the dedicated software "TeCSS," temperature programming and monitoring can be easily done (it can also be operated independently with the temperature controller). Additionally, it displays temperature, time, and scale, and allows for in-situ image capture and storage synchronized with actual temperature records using the dedicated video recording software "HiTOS." By adding a cooling mechanism, it can also accommodate -100°C. ▮ Compact and user-friendly design This heating and cooling stage is designed to be small and thin, making it easy to reproduce special conditions. In addition to observation applications under microscopes or micro-scopes, it can also be repurposed for analytical instruments such as laser microscopes, Raman spectroscopy, and micro-spectroscopy. ▮ Atmosphere control with vacuum chamber structure Due to its vacuum chamber structure, heating and cooling can be performed under vacuum inert gas atmospheres. It also allows for the exhaust of vapors such as degassed materials vaporized by heating, and a XY slideable specimen holder makes it easy to introduce and remove prepared samples.
Inquire About This Product
basic information
【Specifications】 ■ Product Name Heating and Cooling Observation Device MHO-300-2 Temperature Control: RT+20℃ to 300℃ Cooling Mechanism: -100 to 200℃ Heating/Cooling Rate: 100℃/min Heating Control Accuracy: Within ±1℃ Heating Area: 20×20 mm ■ External Dimensions and Utility External Dimensions: 85mm×155mm×30mm (excluding protrusions) Holder: 75mm×25mm (specimen size) Rated Power Supply: AC100V-5A ■ Options - Gas inlet, sample current port, rotary pump for vacuum - Water circulation device (for heating/cooling the stage outer wall) - Programmable temperature software, temperature display video recording software 【Target Materials】 This device can be used for material research in chemistry, polymers, and semiconductors, as well as in fundamental research fields in biology and medicine, to visualize thermodynamic phenomena under a microscope.
Price information
For more details, please contact us.
Price range
P5
Delivery Time
Applications/Examples of results
Please contact us.
