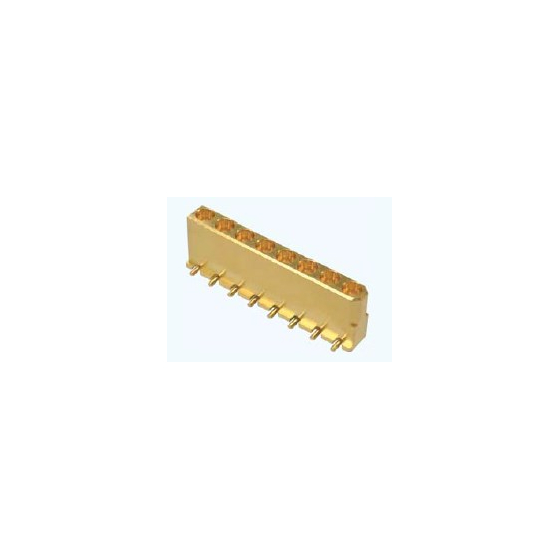

A 3mm pitch coaxial connector capable of bulk connection with 8 poles. Compatible with microwave and millimeter wave.
The "Multi-Pole Coaxial Connector Series" achieves a simultaneous connection of eight poles and is a multi-pole coaxial connector compatible with microwave to millimeter wave bands (DC to 50GHz). With a compact design that keeps the connector pitch at 3mm, it allows for space-saving on the circuit board. It features a durability of 500 mating cycles and achieves low insertion force and stable characteristics, taking into account the ease of connection operation. 【Key Points for Choosing This Product】 ■ Frequency Range: DC to 50GHz ■ Suitable for space-saving installation ■ Low insertion force considering connection operability ■ Achieves stable characteristics ■ Durability of 500 cycles (mating cycles) *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Lineup】 ■ WMA8 Extreme/LP ■ WMA8 Extreme/J SMA/P Assy ■ WMA8 Extreme/J 2.92mmK/P Assy ■ WMA8 Extreme/J WMA8 Extreme/J Assy In addition to the above, we also have 1.85mmV connectors and SMPM connectors available. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ IC chip and high-frequency device development and evaluation boards, etc. * For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Waka Manufacturing Co., Ltd. has developed connectors that support millimeter waves at 110GHz. "Towards higher frequencies" is Waka Manufacturing's development policy for coaxial connectors. The expertise pursued in high frequency is applied to all connectors as high reliability. We are also constantly working on enhancing our new lineup and accommodating user custom-made requests. Waka Manufacturing will continue to challenge itself in pursuit of even higher frequencies and reliability in line with the advancement of electronics.
