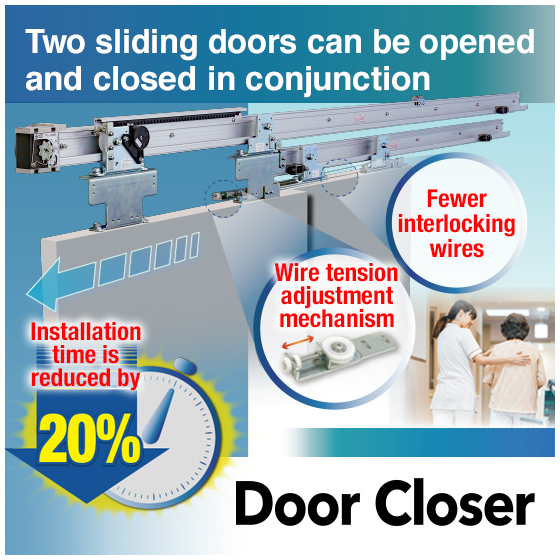

Link the two doors to open and close! Even when there isn't much space for the door pocket, it is possible to achieve a wide effective opening.
The sliding door interlocking device (Model: SC-2SA) is a product that allows two doors to open and close in conjunction with each other when combined with standard set items. It is designed to reduce installation time by approximately 20% compared to conventional products. 【Specifications】 (Base models: NSC-C48/NSC-C88) - Applicable effective opening: 800–1500mm - Applicable door weight [total for 2 doors]: 80kg (up to 160kg*¹) - Applicable door thickness: 30–45mm - Minimum frame internal dimensions: H: 220mm D: 100mm*² *1: By using two sets of the standard closing device for the base model, it can accommodate up to 160kg. *2: In the case of a door thickness of 30mm and a gap of 10mm between doors. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
