Tohoku University Technology: High-sensitivity and low cost vibration sensor: T17-103
Vibration detection using unique shape of sensor and amount of changing high frequency impedance

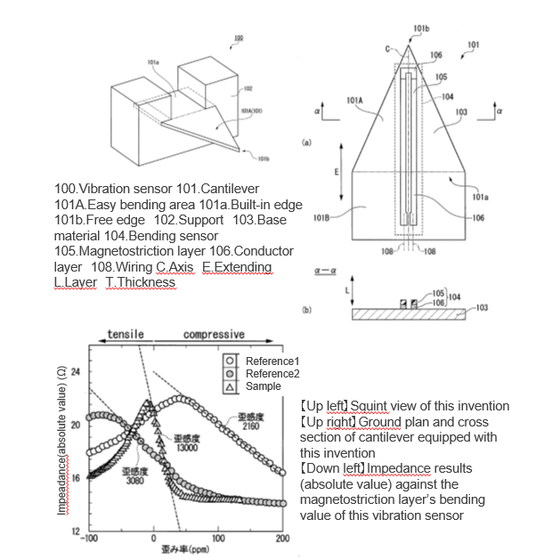

So far, the laser doppler vibrometer or the accelerometer using microelectromechanical system is known to be the most high sensitive vibrometer with actual technology. However, many vibrometers can’t be used in one object due to its high cost. On the other hand, the strain gauge is known to be cheap but the sensitivity is not enough high in order to detect abnormal vibration. This invention has focus on bending a magnetic material can generate a high sensitive permeability variation where it can be detected as HF impedance variation, and the shape of cantilever. This invention can provide high-sensitivity vibration sensor at low cost.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
