Relatively easy production, large surface area (over 5x5mm2), stable phase transition

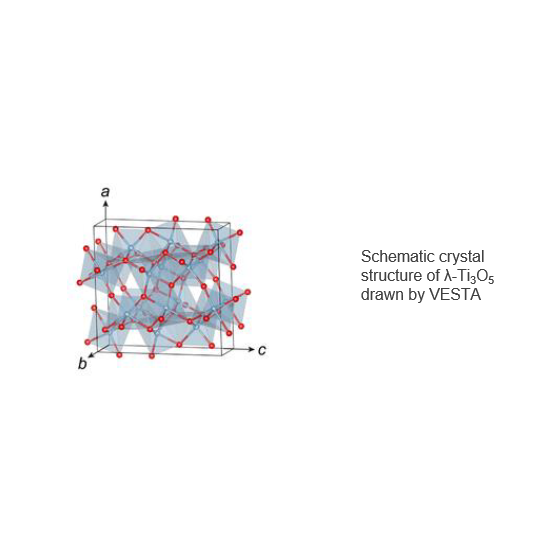

λ-Ti3O5 is the unique oxide material that shows a photo-induced phase transition by visible-light irradiation. It is expected for application for optical recording media such as CD, DVD, and BD because of its low environmental impact compared to conventional chalcogenide materials. However, the crystal size of λ-Ti3O5 is limited to nanometer scale because of its metastable nature. This invention enables λ-Ti3O5 thin films with large surface area (over 5x5mm) using pulsed-laser deposition (PLD) method with TiO2 as a raw material. In a conventional method, λ-Ti3O5 could not be fabricated directly on substrates and an intermediate seed layer was required so that the seed layer component diffuses into λ-Ti3O5, which hindered the phase transition. On the other hand, this invention can synthesize λ-Ti3O5 thin films directly on a substrate without the seed layer, and thus the λ-Ti3O5 thin films show a stable phase transition.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
