Tohoku University Technology: Magnetostrictive composite material and its manufacturing method: T19-755
Relatively soft material with excellent magnetostrictive properties

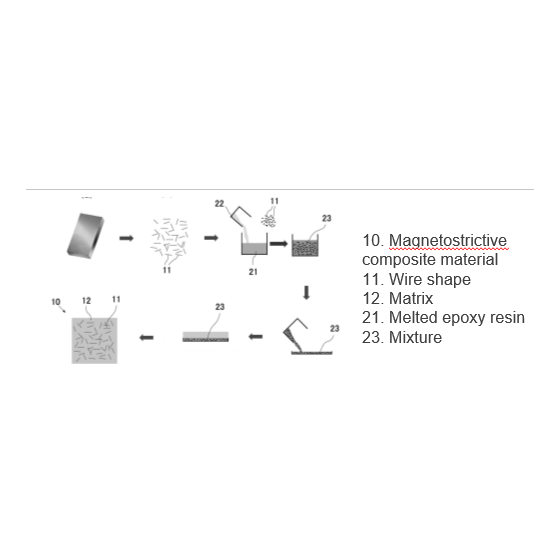

Since a flexible and soft magnetostrictive material does not exist,a soft magnetostrictive composite has been developed by mixing magnetostrictive material with resin. Wire and thin sheet from iron-based magnetostrictive alloy have also been developed as filler embedded in the matrix. However, although these magnetostrictive composite materials are soft, strong processing causes modification in the internal crystal orientation and generates internal defect, resulting in a significant reduction in magnetostrictive properties. In addition, since the filler material consisting of magnetostrictive material of predetermined dimension is embedded into the matrix, the composite material becomes a bit hard. This invention is able to provide a magnetostrictive composite material which is relatively soft with excellent magnetostrictive properties, and its manufacturing method. This invention consists of an iron based magnetostrictive alloy which is characterized by a large number of wire shape having a predetermined range of diameter and length dispersed in a resin matrix which has excellent flexibility and softness. It also has an excellent magnetostrictive properties since the strong processing has only a limited impact on magnetostrictive properties modification.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
