Tohoku Univ. Technology : Room temperature deposition of oxide solid ionic films : T22-111
Thin film deposition technology by plating oxide solid ion battery

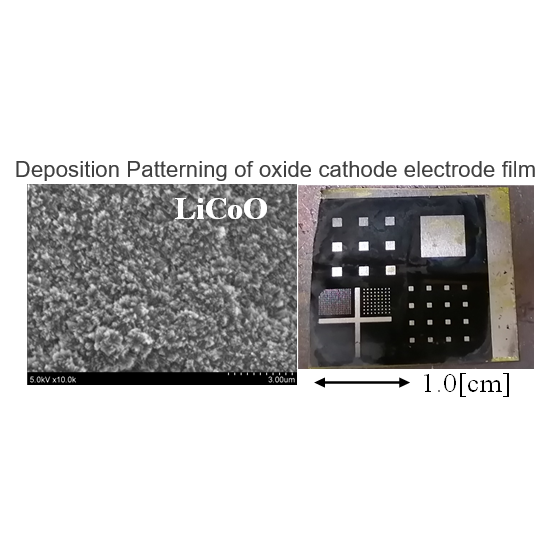

We have developed a technology to deposit solid-state ionic films used in solid oxide secondary batteries at room temperature by electroplating. This technology makes it possible to integrate small solid-state ionic batteries, which has been difficult until now. Some oxide solid-state ionic batteries are fabricated by powder sintering or sputtering, but they require a high temperature process, so the separation by thermal stress is a problem. The present invention provides a technique for depositing a solid ionic film (Cathode electrode and solid electrolyte films) by electroplating without requiring a high temperature process. The films of the cathode active materials and solid electrolytes were successfully deposited and patterned by electroplating at room temperature. In addition, an ionic solid-state battery was fabricated using this technology, and its operation was confirmed (right figure).
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
