Tohoku University Technology: Electrochemical transfer of tramp element from molten iron: T20-1058
Continuous Cu separation from molten Fe by molten oxide electrolysis

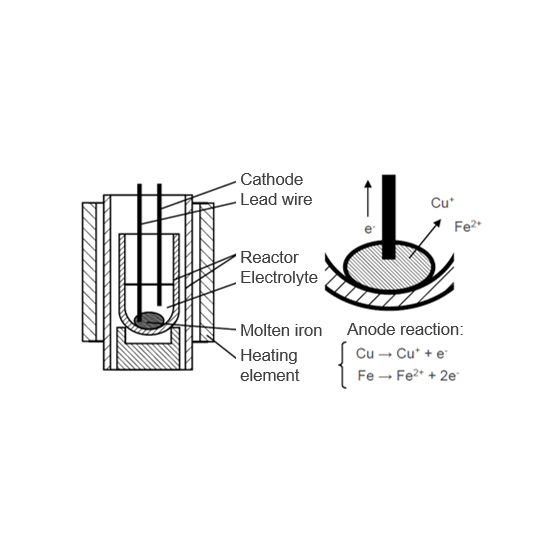

Recycled smelting using steel scrap can significantly reduce carbon usage and CO2 emission compared to current method, and it is an effective mean to reduce the actual increasing amount of steel scrap. However, the contamination of tramp elements, such as Cu/Ni/Sn, which are difficult to remove by oxidation and evaporation, causes the property and workability deterioration of steel material. In addition, since tramp elements are concentrated each time the steel scrap is recycled, they become the cause of the inability to increase recycling rate. The conventional method of copper removal using sulfide flux has been considered, but this is a batch process using a large amount of sulfide. This invention is about a technology to promote ion separation of Cu in molten iron into molten slag using electrochemical method, which enables in principle continuous processing. Moreover, not only purification of molten iron but also recycling of recovered electrodeposited copper can be considered.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
catalog（1）
Download All Catalogs
Company information
The revenue generated from technology transfer is reinvested as new research funding for universities and researchers, and is utilized to create further research outcomes. To ensure the smooth operation of this cycle, known as the "Intellectual Creation Cycle," we will vigorously promote technology transfer. The types of seeds we handle include patents, know-how, databases, and programs. We have established a collaborative framework by signing basic technology transfer agreements with the following universities (as of June 1, 2025): Tohoku University, Hirosaki University, Iwate University, Akita University, Fukushima University, Yamagata University, Tohoku Gakuin University, Iwate Medical University, Fukushima Medical University, Aizu University, Miyagi University, Hokkaido University, Muroran Institute of Technology, and Showa Medical University.
