Achieve an unprecedented growth rate!

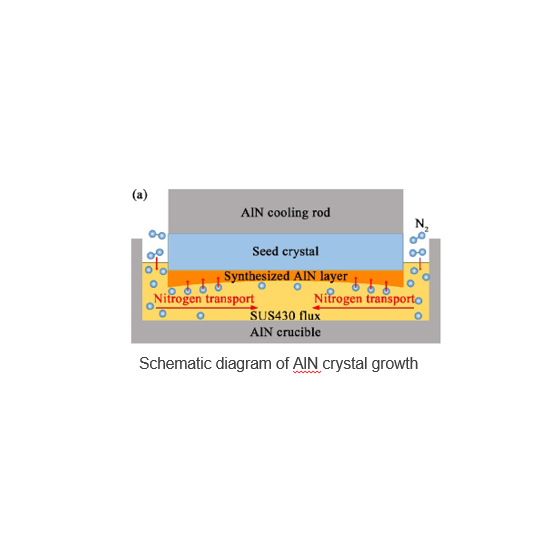

The deep ultraviolet light emitting device (DUV-LED) is fabricated from AlGaN-based nitride semiconductor. As the substrate material of the AlGaN-based DUV-LED, high lattice consistency with AlGaN, wider band gap than AlGaN, and high thermal conductivity are required, and aluminum nitride (AlN) which satisfies these conditions is noticed. Since AlN shows high dissociation pressure at high temperature, it is difficult to grow AlN crystal by crystal growth technique from melt such as CZ method. Therefore, single crystal growth using sublimation method is mainly carried out. However, the sublimation method requires extremely high temperature to sublimate AlN, which makes it difficult to increase the size of crystal, reduce impurities such as carbon, and reduce the cost. The present invention has made it possible to grow high-quality AlN single crystal at a higher growth rate than the conventional liquid phase growth technique by the liquid phase growth method using Fe-based flux.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
