Hirosaki Univ. Technology : Automatic injection device : K23-019_K23-028
To realize a completely non-contact automatic puncture robot!

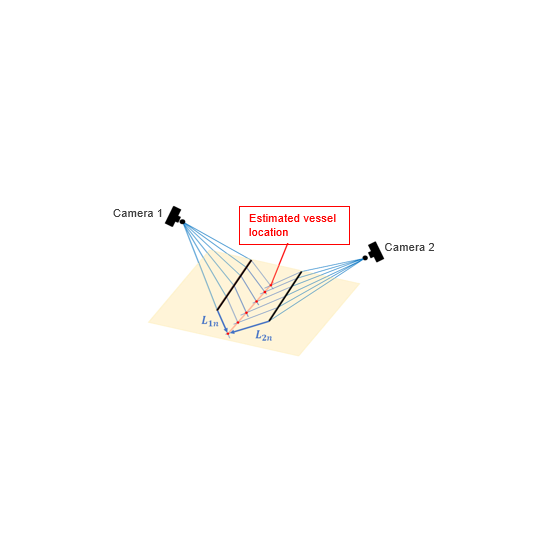

In today's clinical medicine, blood sampling is frequently used to diagnose and treat diseases, and the problem of shortage of medical workers has been pointed out. In addition, it is difficult for clinicians to find blood vessels with the naked eye in some patients, and there is a risk of failure in the procedure, as well as serious problems such as needlestick injuries and infections caused by blood contact. To solve these problems, automated robotic blood sampling may be effective. Various types of blood sampling robots have been studied, but many automated puncturing robots use ultrasonic diagnostic imaging equipment. In order to prevent the spread of infectious diseases, it is ideal to estimate the position of blood vessels and achieve automated puncturing without contact with patients. The present invention relates to a method for identifying the position of three-dimensional blood vessels using two infrared cameras without complete contact. By considering the difference in refraction depending on the viewing direction of the cameras, it became possible to identify the position of blood vessels with high accuracy.
Inquire About This Product
basic information
For more details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
